Commercial Stufed Meatball Forming Machine

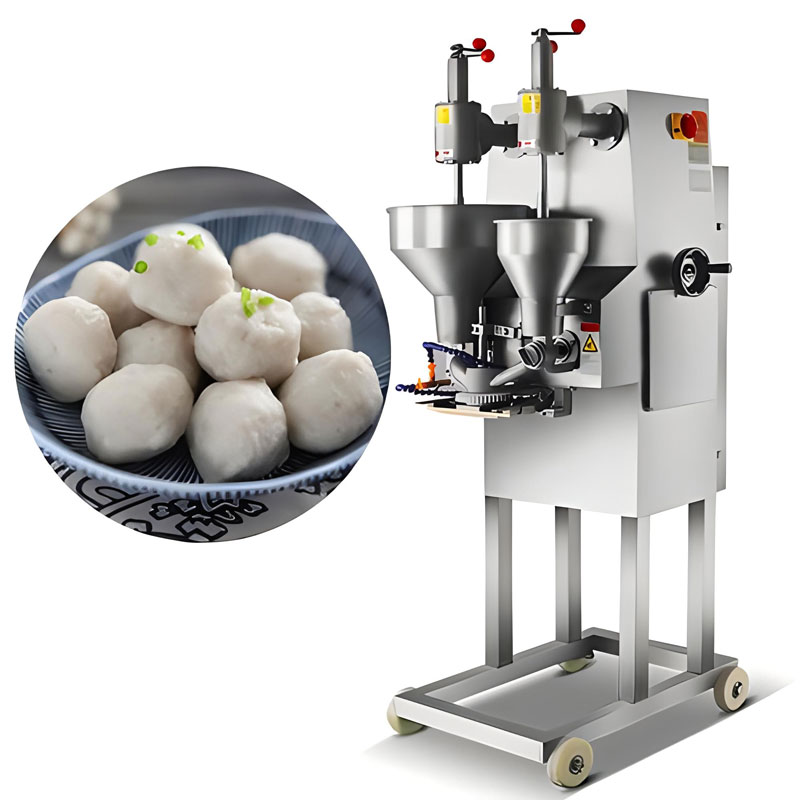

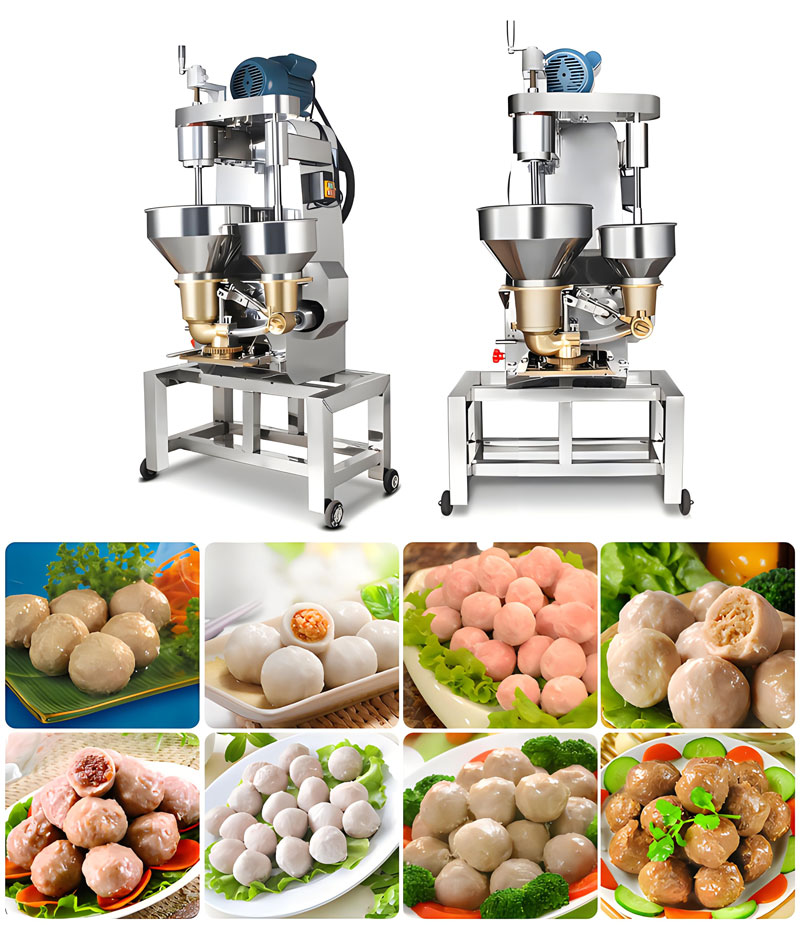

Commercial Stuffed Meatball Forming Machine

Creating center-filled meatballs—whether injecting molten cheese into ground beef or sweet fish roe into dense surimi paste—is famously unstable, frequently resulting in devastating blowouts, off-center fillings, and massive product waste during the thermal cooking phase. Engineered strictly for premium, high-margin product lines, our commercial stuffed meatball forming machine completely resolves these complex physics via advanced co-extrusion technology. Equipped with massive dual hoppers and separate, independently controlled variable frequency drives (VFD), this heavy-duty 2.2KW system precisely injects the delicate inner core perfectly into the exact center of the outer meat mass, rapidly scaling your production of lucrative, center-filled proteins to 250 pieces per minute.

• Absolute Core Centering: The specialized dual-pipe extrusion nozzle guarantees the filling is flawlessly embedded in the absolute dead-center of the sphere, fiercely preventing thin outer walls that leak during aggressive hot water boiling.
• Extreme Output Velocity: Relentlessly churns out up to 250 perfectly sealed, stuffed meatballs per minute, completely eliminating the astronomical labor costs of manual encrusting operations.
• Variable Filling Ratios: Floor engineers can digitally manipulate the volume of the filling compared to the outer casing (from a light 10% injection up to a massive 30% core volume) using the independent pump dials.

Technical Specifications of the Stuffed Meatball Extruder

Precision Dual-Hopper Co-Extrusion Dynamics

• Independent Viscosity Management (Zero Bleeding): Pumping a highly liquid core (like melted butter or gravy) alongside a dense outer wall (like frozen beef paste) causes immense back-pressure chaos. This machine violently separates those environments. Hopper A strictly pushes the heavy outer casing, while Hopper B gently pumps the liquid core. The two totally distinct materials only physically intersect at the absolute tip of the extrusion nozzle, preventing the core from bleeding backward into the pump.
• Scissor-Action Mechanical Shearing (Flawless Sealing): If the meatball is not perfectly sealed, the expensive inner core will violently erupt into the cooking water. The extrusion die pushes the two-part dough outward, and rapidly sliding, highly sharpened internal plates slice across the tube. This aggressive rolling cut forcefully pinches the outer meat together, trapping the core inside a flawless, hermetically sealed sphere.
• Anti-Adhesion Metallurgy (Perfect Sphere Drop): Heavy surimi and fish pastes act like industrial glue. The cutting matrix and extrusion tubes are forged from specialized anti-stick copper alloys, actively refusing to bond with the raw protein and ensuring the ball drops instantly into the water trough without stretching into a deformed teardrop.
• Twin Spiral Augers (Combating Air Pockets): Cavitation inside the primary meat hopper leads to half-empty meatball walls that burst. The deep SUS304 primary hopper utilizes a slow-rotating spiral auger to relentlessly force resistive chunks downward into the gear pump, guaranteeing a dense, unbroken outer meat mass.

Turnkey Integration for Heavy Yield Factory Layouts

Because this rapid 250 pcs/min co-extrusion creates inherently soft, raw spheres carrying a delicate liquid center, they absolutely cannot fall onto hard conveyor belts or they will instantly flatten. This towering 320kg machine must be securely bolted at the very front of an elongated continuous hot water setting trough. Once the dense batter is thoroughly processed in a dedicated upstream commercial meat grinder and mixer, it is loaded into the hoppers. The perfectly sealed stuffed spheres sequentially drop centimeters directly into an 80°C hot water bath, immediately turning the proteins rigid. After the core is securely locked inside the cooked outer shell, the products advance smoothly into a deep-freeze automated frozen food production line, finalizing a rapid, zero-touch industrial workflow.

Washdown Defenses for Constant RTE Production

Working persistently with multiple raw meat types and complex dairy fillings in a single machine introduces severe cross-contamination threats. Our electrical architects built the 2.2KW motor housing to stringent IP65 waterproof codes. During the mandatory nightly sanitation audit, operators do not require wrenches. The rapid-release knobs allow the entire dual-gear pump casing, twin augers, and scissor plates to be pulled directly off the 320kg heavy-gauge SUS304 chassis and plunged into aggressively heated sanitary acid sinks, ensuring zero microscopic bacterial nesting zones survive to the next active shift.

Are you destroying your luxury margin on center-filled products due to leaking meatballs and manual labor costs? Reach out to our Turnkey engineering architects today for a specialized ROI evaluation and custom plant layout.
