Multifunction Pasta Machine
We Are Not Only Capable Of Selling Products, But Also Have The Ability To Undertake Full Turnkey Projects.
Heavy-Duty Multifunction Pasta Machine
Operating a dynamic, high-volume flour processing facility requires immense agility; dedicating massive, unchangeable floor hardware to a single, localized pasta shape is a catastrophic waste of capital. Engineered relentlessly for high-margin central kitchens and demanding food factories, our commercial multifunction pasta machine shatters operational limitations. Powered by an unrelenting 4.5KW vacuum-assisted extrusion engine, this machine aggressively forces high-density semolina dough through beautifully engineered, interchangeable extrusion dies. With zero mechanical stalling, it flawlessly produces up to 300kg per hour of perfectly textured macaroni, fusilli, penne, or conchiglie, instantly adapting to your wildly fluctuating weekly supermarket purchase orders.
- Extreme Extrusion Velocity: The heavy-duty internal worm shaft relentlessly processes dry and wet dough variants, rocketing your daily output up to an aggressive 300 kilograms per hour.
- Limitless Shape Architecture: Completely bypass the need for a fleet of specialized machines. By simply swapping the primary front die, this unit transitions from producing ridged penne to delicate spaghetti in under five minutes.
- Vacuum Dough De-Aeration: An integrated 0.5 Mpa vacuum pump actively sucks microscopic air bubbles out of the mixing hopper before extrusion, completely preventing the dry pasta from cracking or physically shattering during the downstream drying phase.
Technical Specifications of the Industrial Pasta Extruder
| Specification | Industrial Parameter |
|---|---|
| Hardware Model | MPM-500 Multifunction Extrusion Series |
| Maximum Production Capacity | 150 to 300 kg/h (Dictated by exact die shape geometry) |
| Included Extrusion Shapes | Macaroni, Penne, Fusilli (Additional custom dies available) |
| Primary Drive Power | 4.5 KW (Heavy-torque industrial variable frequency motor) |
| Standard Operating Voltage | Three-Phase 380V / 50HZ (Strictly industrial power grids) |
| Primary Extrusion Dies | Premium brass core with thick anti-stick Teflon plating |
| Physical Machine Dimensions | 1500 mm (L) x 900 mm (W) x 1850 mm (H) |
| Net Equipment Weight | 450 kg |

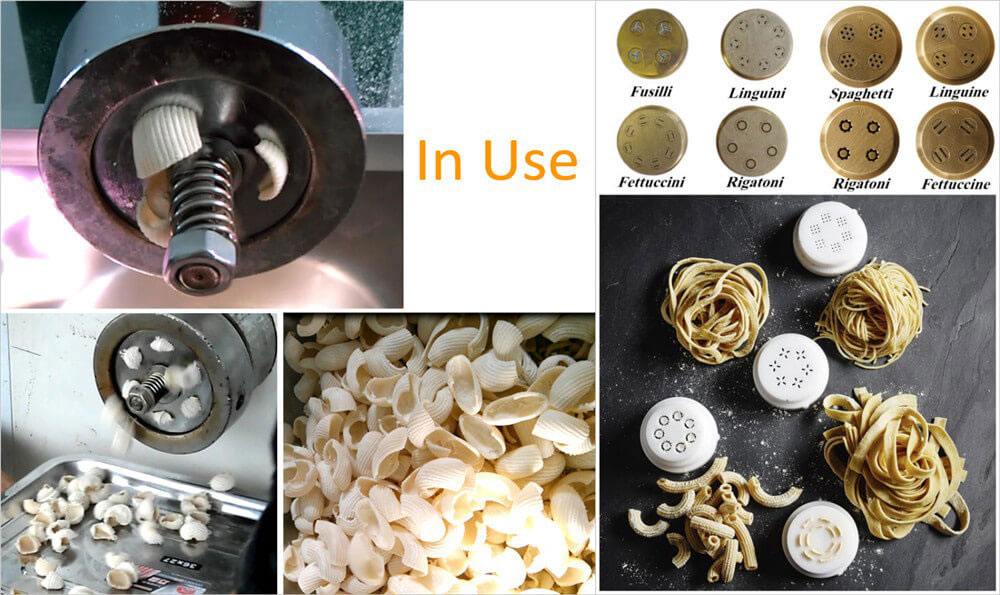

Mastering Diverse Yields via Quick-Swap Extrusion Dies
- Teflon-Coated Brass Tooling (Perfect Texture): Extruding highly dense semolina dough under massive pressure generates immense, destructive friction. Our extrusion dies utilize a heavy brass core for immense structural integrity, coated heavily in industrial Teflon. This ensures the pasta slips through the die matrix flawlessly, producing a smooth, ultra-premium surface color without friction burns.
- Synchronized Rotary Cutter (Uniform Lengths): Clinging exactly to the face of the extrusion die is an independent, motorized rotary shearing blade. By digitally dialing the speed of this blade up or down from the central touchscreen, the floor supervisor can mathematically alter the drop length of the pasta—snapping the machine from producing long 80mm penne down to tiny 10mm soup shells in an instant.
- Internal Water-Cooling Jacket (Starch Preserver): Forcing massive volumes of dough through a narrow steel cylinder generates extreme, terrifying thermal heat. If the dough exceeds 50°C inside the barrel, the delicate wheat starches will prematurely cook, ruining the final texture. This machine features an active cold-water circulation jacket wrapping the entire extrusion barrel, violently stabilizing the dough temperature and preserving the structural protein matrix.
- Sub-5 Minute Changeovers (Zero Factory Downtime): The heavy steel locking ring securing the front die matrix is designed with massive, wrench-friendly locking lugs. One operator can easily halt the machine, safely unbolt the massive ring, extract the heavy macaroni die, and install the fusilli die.
Anchoring Your High-Volume Flour Processing Output
Because this commanding 450kg unit produces intensely moist, freshly extruded pasta at an alarming rate, treating it as an isolated, standalone workstation is mechanically fatal. As the raw product violently dumps from the rotary cutter, it must be rapidly and automatically whisked away to prevent the heavy wet dough from fusing together underneath the machine. We strongly architect this unit to operate exclusively as the high-pressure beating heart within a fully automatic commercial pasta production line. By positioning this commercial pasta extruder directly over the shaking intake screens of a multi-tiered thermal drying tunnel, the moist product is instantly dehydrated, securing your workflow and absolutely locking down the factory floor against bacterial spoilage.
Unyielding Hygiene in High-Moisture Factory Environments
Wet flour inevitably acts like industrial concrete if allowed to dry inside the dark recesses of a machine. Our electrical and mechanical architects prioritized rapid, unmerciful sanitation. The massive internal mixing hopper tilts smoothly downward, and the heavy 304 stainless steel extrusion auger completely withdraws from the barrel on a specialized heavy trolley. This extreme internal access allows your sanitation crew to hit the core components with high-pressure, scalding hot water wands. The imposing sealed 4.5KW motor cabinet strictly conforms to European IP65 washdown parameters, ensuring catastrophic electrical failure is never a reality on your factory floor.
Are you losing disastrous amounts of factory time tearing down clunky machinery to switch pasta shapes? Connect directly with our international layout engineers for a custom yield evaluation and pricing quotation.
Frequently Asked Questions
Can this specific extrusion machine effectively process heavily hydrated rice flour or gluten-free dough recipes
Yes, the machine possesses immense variable frequency control (VFD). Because gluten-free and rice-based doughs lack the highly elastic binding matrix of standard durum wheat, they are incredibly fragile. The operator can digitally reduce the rotational RPMs of the extrusion auger to gently push the delicate gluten-free paste without destroying it due to excessive sheer force.
Does the equipment physically cook the pasta or steam it during the extrusion pathway
No, this is absolutely and strictly a cold-extrusion forming machine. While it utilizes a cold-water cooling jacket to deliberately prevent friction heat from building up, the output product is entirely raw, wet pasta (frequently around 30% moisture content). The pasta must subsequently enter a continuous hot-air drying tunnel or a direct boiling system.
What is the exact procedure to safely clean the intricate holes inside the solid brass extrusion dies
When pulling a brass die out of the machine at the end of a shift, it is completely packed with dense, highly compressed wet dough. We provide a specialized soaking vat system. The dies must be submerged in warm enzymatic water solutions which rapidly break down the hardened starches, allowing them to be cleanly blasted out with high-pressure air rather than aggressively digging at the teflon with sharp metal tools.
Will this machine automatically blend and hydrate the dry flour prior to the extrusion phase
Yes, the upper section of the machine chassis features a dedicated, heavy-duty dough mixing hopper. The operator dumps the dry semolina flour and exact volumes of water or liquid egg into this upper chamber. Specialized agitating paddles completely combine the raw materials into an optimized granular crumb texture before mechanically dropping it down into the vacuum extrusion chamber.
If the specialized rotary cutting blade forcefully strikes a hardened mass of dried dough, will the motor burn out
The independent servo motor driving the rotary cutter features an incredibly sensitive electronic overload relay. If the blade abruptly strikes an impossibly dense object and physically stops the rotational momentum, the PLC identifies the violent amperage spike within milliseconds and cuts electrical power instantly, preventing the highly expensive servo motor from melting down due to mechanical lockup.
