Industrial Meat Smoking Machine: Programmable Multi-Function Smokehouse

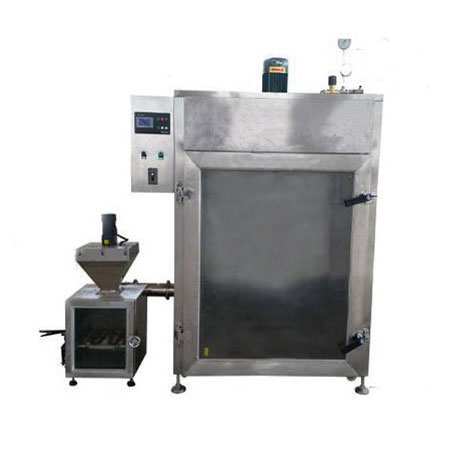

The SMH-500 Meat Smoking Machine is a fully enclosed, trolley-in thermal processing chamber that consolidates drying, smoking, steam cooking, and roasting into a single programmable unit. Designed for sausage manufacturers, bacon processors, smoked deli meat producers, and artisan smokehouse operations, this system eliminates the traditional requirement for separate drying ovens, standalone smoke generators, and cooking kettles. A single PLC controller manages multi-stage recipes with up to 20 sequential processing steps, automatically transitioning through pre-drying, cold smoking, hot smoking, steam cooking, and final showering phases without operator intervention. The result is batch-to-batch color, flavor, and texture consistency that manual smokehouse management cannot replicate.

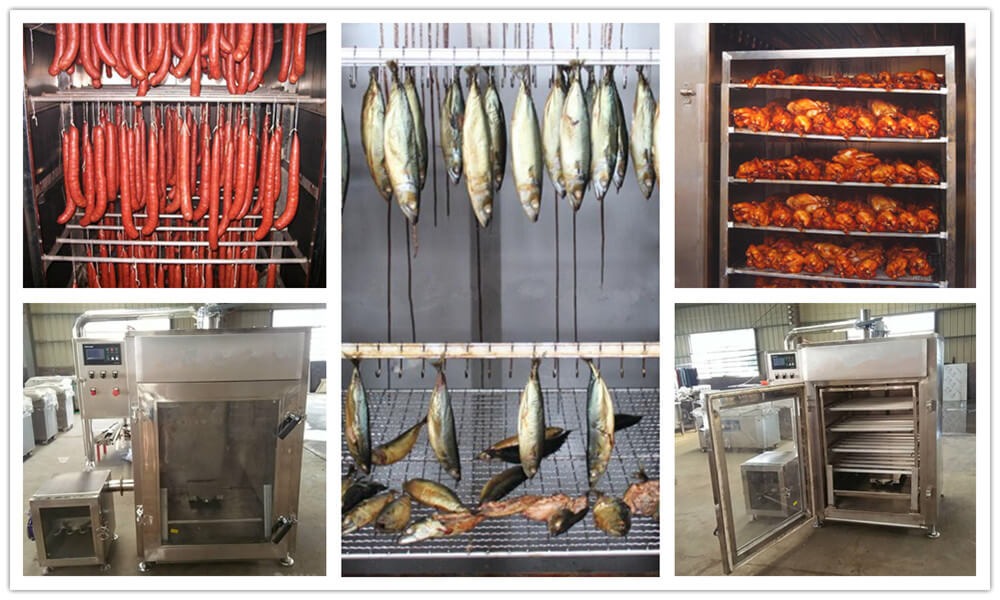

• Processes 300 to 500 kg of product per batch across two roll-in smoking trolleys.
• Integrated friction smoke generator produces clean, condensate-free hardwood smoke with adjustable density from light golden to deep mahogany.
• Achieves precise internal chamber humidity control from 15% RH (aggressive drying) to 99% RH (saturated steam cooking).

SMH-500 Multi-Function Smokehouse Specifications

Friction Smoke Generation: Clean Phenolic Deposition Without Condensate

The quality of smoke fundamentally determines the commercial value of the finished product. Traditional chip-burning smoke generators produce unfiltered combustion gases laden with heavy tar, creosote compounds, and particulate ash. These contaminants deposit as a bitter, sticky residue on product surfaces and blacken the chamber interior within weeks. The SMH-500 eliminates this entirely through friction-based smoke production.

A hardwood log (beech, hickory, cherry, or apple) is pressed against a high-speed rotating steel wheel by a pneumatic cylinder. The friction generates temperatures of approximately 350 to 400 degrees Celsius at the contact point, thermally decomposing the wood cellulose into a controlled stream of clean, pale blue-white smoke rich in desirable phenolic flavor compounds and carbonyl browning agents. Because no open combustion occurs, there is zero ash generation, zero creosote formation, and zero risk of internal chamber fire. The pneumatic pressure against the log is infinitely adjustable, allowing the operator to dial smoke density from barely visible wisps for delicate fish products to thick, opaque clouds for aggressive bacon coloring.

Multi-Stage Processing Logic

Each product category demands a unique thermal and atmospheric sequence. The PLC allows complete customization of every processing variable at each stage.

• Stage 1 — Pre-Drying: Fresh sausages or marinated meats enter the chamber with wet surfaces. High-velocity heated air at 55 to 65 degrees Celsius and 15 to 25 percent RH rapidly evaporates surface moisture, forming the critical pellicle — a thin, tacky protein skin that smoke compounds subsequently adhere to. Without this pellicle, smoke slides off the wet surface, producing blotchy, uneven coloring.
• Stage 2 — Cold Smoking: For products requiring smoke flavor without thermal cooking (such as cold-smoked salmon or fermented salami), the chamber maintains 20 to 30 degrees Celsius while introducing dense smoke. Duration ranges from 30 minutes for light flavor to several hours for intense smoke penetration.
• Stage 3 — Hot Smoking: The chamber temperature ramps to 70 to 85 degrees Celsius while smoke continues. This phase simultaneously cooks the outer protein layer, fixes the nitrosohemochrome curing color in nitrite-treated products, and drives phenolic compounds deep into the meat surface through thermally enhanced diffusion.
• Stage 4 — Steam Cooking: For fully cooked products, the chamber injects live steam, raising humidity to 99 percent RH at 78 to 85 degrees Celsius. The core temperature probes track the internal product temperature, automatically advancing to the next stage when the target (typically 72 degrees Celsius for poultry, 68 degrees Celsius for pork) is confirmed.
• Stage 5 — Cold Shower: An overhead spray bar delivers chilled water directly onto the hot product, rapidly dropping the surface temperature. This thermal shock tightens the collagen casing on sausages, improves skin peel characteristics, and shortcuts the cooling phase for faster trolley turnover.

Airflow Engineering Inside the Chamber

Uniform product appearance across all 40 rack tiers requires symmetrical air and smoke distribution. The SMH-500 employs a reversible axial fan mounted in a dedicated air-handling plenum above the product zone. Heated, smoke-laden air is drawn through the product racks from one side, passes across every tier, and returns through the opposite plenum wall. The fan reverses direction automatically at timed intervals, ensuring that products on the left side receive identical exposure to products on the right. This bidirectional circulation eliminates the shadow zones and dark-light striping that plague single-direction airflow smokehouses. The fan speed is VFD-controlled from 30 to 100 percent capacity, providing gentle air movement during delicate cold-smoking phases and aggressive convection during high-temperature cooking stages.

Integration With Sausage and Cured Meat Production

The SMH-500 serves as the thermal finishing station for upstream curing and forming operations. Stuffed sausages from filling lines, injected and netted hams from tumbling departments, and cured bacon slabs from brine tanks are loaded onto standardized smoking trolleys and rolled directly into the chamber. After processing, the trolleys roll out to vacuum packaging or slicing stations. Facilities operating complete sausage production line architectures position the smokehouse as the final value-adding step before packaging and cold storage. The trolley rail system is dimensionally compatible with standard European 1000 x 985 mm smoking racks used across the global processed meat industry, integrating with sausage making equipment from multiple manufacturers.

To request a detailed quotation for your specific chamber size, obtain customized smoking recipe parameters for your target product portfolio, or receive a complete factory integration layout, please contact our thermal processing engineering division. We deliver fully commissioned smokehouses globally with recipe development, operator training, and ongoing technical support.
