Patty Maker Machine

Industrial Patty Maker Machine: Precision-Formed Burgers for QSR and Frozen Food Supply Chains

The APF-4200 Patty Maker Machine is a high-speed, automatic forming system that converts ground meat, poultry mince, fish paste, or plant-based blends into dimensionally uniform, weight-controlled patties at sustained rates of up to 4200 pieces per hour. In Quick Service Restaurant (QSR) supply chains, where a single patty weight deviation of more than 3 grams triggers batch rejection by the distributor, mechanical consistency is not a luxury. The APF-4200 achieves +/- 1.5 gram portion accuracy across continuous 8-hour production shifts by combining a positive-displacement vane pump filling system with precision-machined rotary mold cavities. Every patty that exits this machine is visually identical, dimensionally stable, and ready for direct paper interleaving, IQF tunnel freezing, and retail or foodservice packaging.

APF-4200 Automatic Forming System Specifications

Vane Pump Filling: Eliminating Air Pockets and Weight Drift

Gravity-feed patty machines suffer from a fundamental flaw: as meat levels in the hopper drop, the decreasing hydrostatic pressure reduces the density of meat entering the mold cavity. Patties formed from a full hopper weigh noticeably more than those formed when the hopper reaches its lower third. Over an 8-hour shift, this progressive drift accumulates into significant raw material giveaway or underweight compliance failures.

The APF-4200 bypasses this physics entirely. A positive-displacement vane pump mounted beneath the hopper mechanically forces ground meat into the rotating mold cavity at a constant, pressure-regulated volume regardless of hopper fill level. The pump pressure is adjustable from 0.1 to 0.6 MPa via an analog dial on the control panel, allowing operators to fine-tune the fill density for different meat formulations. Dense, high-fat beef blends require lower pressure to avoid excessive compaction; lean chicken mince with added water requires higher pressure to achieve complete cavity fill without air voids.

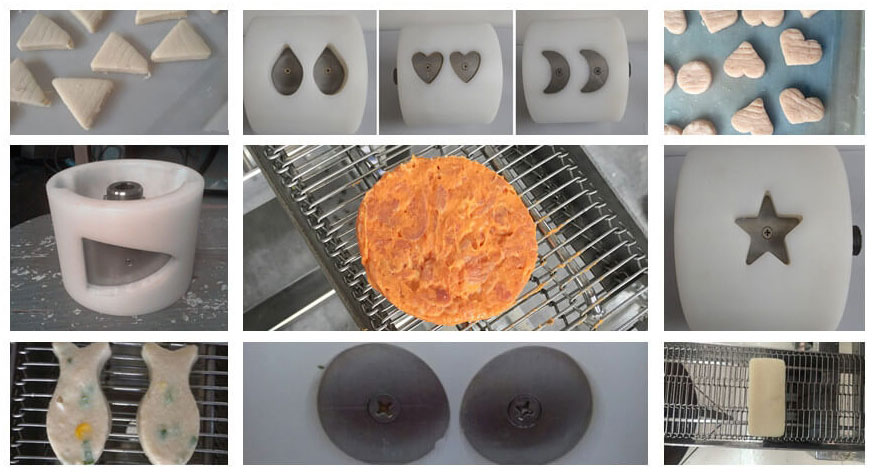

Rotary Mold Plate: Rapid Format Changeover

• Interchangeable Cavity Dies: The mold plate is a precision-machined SUS316L disc containing one or two forming cavities. Changing the patty diameter from a standard 100 mm hamburger to a 130 mm premium burger or an 80 mm slider requires only swapping the mold disc. The exchange takes under 3 minutes. No tools are required; the plate locks into position via a quarter-turn bayonet fitting.
• Adjustable Thickness Control: Patty height is governed by the depth of the knock-out piston within the mold cavity. A micrometer-graduated handwheel on the machine frame raises or lowers the piston floor in 0.5 mm increments, providing infinitely adjustable thickness from 6 mm to 25 mm without changing the mold plate itself.
• Surface Texture Options: The cavity floor and ceiling can be fitted with optional textured inserts that stamp a crosshatch grill pattern or concentric ring pattern onto both patty faces. These cosmetic impressions improve visual appeal in transparent retail packaging and enhance surface browning uniformity during consumer cooking.

Versatility Beyond Beef: Multi-Protein Forming Capability

The APF-4200 is not restricted to ground beef. The vane pump and mold plate geometry handle a wide range of protein matrices with equal precision. Chicken breast mince for breaded patties, fish paste for formed seafood burgers, lamb kofta blends, and increasingly popular plant-based formulations containing methylcellulose binders all form cleanly without mechanical modification. This multi-protein flexibility positions the machine as a central forming node in diversified food manufacturing operations. Ground meat is typically prepared upstream using a heavy-duty commercial meat grinder, then blended with seasonings in a paddle mixer before being loaded into the APF-4200 hopper. Formed patties discharge onto a takeaway conveyor and proceed directly into breading lines or IQF tunnels integrated within broader chicken nugget production line configurations.

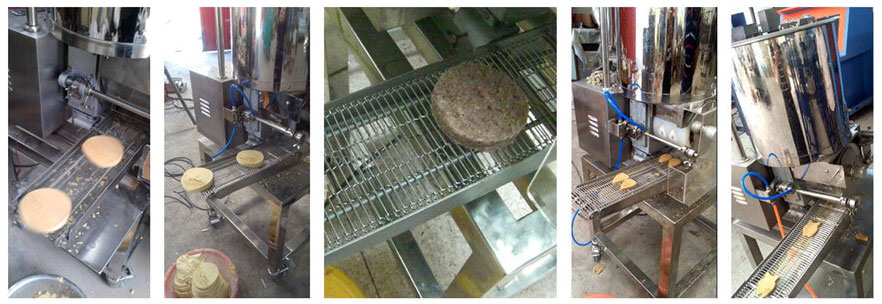

Paper Interleaving and Downstream Discharge

Stacking raw patties without separation causes permanent surface adhesion during freezing. The APF-4200 includes an integrated paper interleaving module mounted directly at the discharge point. A roll of food-grade waxed paper feeds continuously beneath the knock-out station. As each patty is ejected from the mold cavity onto the takeaway belt, a pre-cut paper disc is automatically placed beneath it. Subsequent patties stack neatly onto the paper-separated column, ready for direct insertion into cartons or flow-wrap packaging. The paper roll holder accommodates standard 300 mm diameter rolls, providing approximately 4 hours of uninterrupted production before the operator loads a fresh roll.

Sanitation and Disassembly Protocol

The APF-4200 is engineered for complete tool-free disassembly of all product-contact components. The hopper lifts off the frame on guide rails. The vane pump housing opens via a hinged stainless lid. The mold plate, knock-out piston, and paper cutter assembly all detach independently. Every component is fabricated from SUS316L or FDA-compliant engineering polymers, fully compatible with commercial dishwashers and standard chlorinated sanitizer solutions. The machine frame features sloped surfaces and fully welded radius corners with no horizontal ledges, allowing external washdown to drain completely without pooling. Total disassembly-to-reassembly sanitation time is approximately 25 minutes.
