Small Chicken Feet Peeling Machine: Low-Investment Entry into Paw Processing

The CFP-200 is a compact, standalone chicken feet peeling machine built for small-scale poultry processors, independent butcheries, wet market vendors, and startup operations that need to produce clean white paws without committing to a full integrated production line. Weighing under 120 kg and operating on standard single-phase 220V household power, this unit delivers a consistent 150 to 200 kg per hour peeling capacity. Operators simply pre-scald their chicken feet in a separate hot water vessel, then load the batch into the machine's open-top drum. Within 30 to 45 seconds of tumbling, the yellow cuticle is mechanically stripped, and bright white export-appearance paws are ready for chilling and sale.

CFP-200 Compact Peeler Specifications

How the Batch Peeling Cycle Works

The entire operational workflow is deliberately simple. No PLC programming, no HMI touchscreen, no compressed air connections. A single operator manages the complete cycle using a basic waterproof on/off toggle switch and a manual water valve.

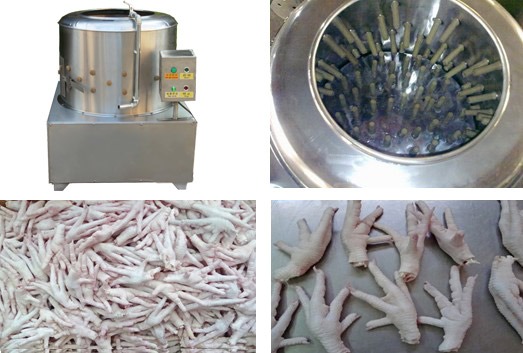

Pre-scalded chicken feet (blanched at 65 to 68 degrees Celsius for approximately 2 minutes in a separate vessel) are scooped directly into the open top of the rotating drum. The operator opens a freshwater valve mounted above the drum, creating a continuous rinse stream. Inside, dozens of tapered food-grade rubber fingers mounted on a rotating disc base and the stationary inner wall work in opposition. The spinning floor throws the feet outward against the wall-mounted fingers while the floor-mounted fingers simultaneously scrub from below. This dual-action tumbling strips the softened yellow cuticle in 30 to 45 seconds. The operator then tilts the discharge lever, and cleaned paws slide out through a hinged side gate directly into a waiting ice water basin.

Why Small Operators Choose This Over Manual Processing

• Labor Reduction: Hand-peeling chicken feet requires 4 to 5 workers to match 200 kg/h output. The CFP-200 achieves the same throughput with one person, freeing the remaining staff for higher-value tasks like grading and packaging.
• Consistent Quality: Manual peeling produces wildly inconsistent results. Some feet emerge perfectly white; others retain yellow patches that buyers reject. The mechanical tumbling action applies uniform friction to every surface of every foot in the batch simultaneously.

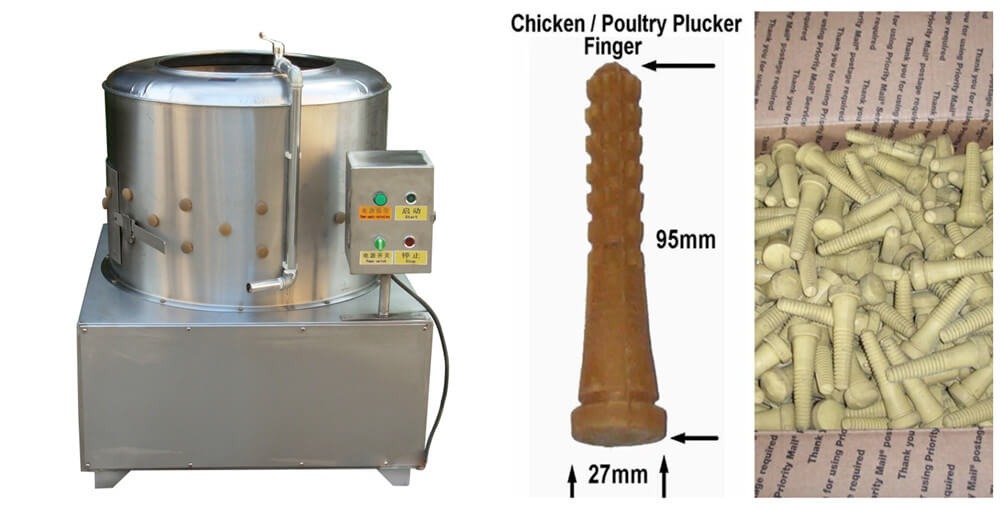

• Intact Claw Preservation: The Shore A 50 durometer rubber formulation is specifically calibrated to be aggressive enough to strip cuticle but flexible enough to bend around delicate toenail joints rather than snapping them. Broken claws downgrade the commercial value of the entire batch.
• Minimal Floorspace: At only 700 x 700 mm, the machine occupies less than half a square meter. It fits comfortably alongside standard wet-processing sinks in cramped market stall back-rooms or small abattoir offal processing areas.

Scalding: The Critical Pre-Step

Because the CFP-200 is a dedicated peeling-only unit, proper scalding must occur externally. The simplest approach uses a standard commercial gas-heated stockpot or a small stainless steel scalding tank. Maintaining the water at 65 to 68 degrees Celsius and immersing the raw feet for exactly 90 to 120 seconds is critical. Underscalding at 60 degrees Celsius leaves the cuticle bonded too firmly; overscalding above 72 degrees Celsius cooks the collagen in the toe joints, causing structural disintegration during peeling. For operators scaling up from manual methods, this temperature discipline is the single most impactful factor in achieving professional-grade results. Operations eventually expanding to higher volumes can transition to a fully integrated Turnkey chicken production line that automates the scalding phase internally.

Maintenance, Durability, and Practical Ownership

The CFP-200 is engineered for environments where dedicated maintenance technicians do not exist. The 1.5 KW single-phase motor is a sealed, permanently lubricated unit requiring zero scheduled servicing. Rubber peeling fingers are individually threaded onto SUS304 studs; replacing a worn finger takes under 60 seconds with no tools beyond bare hands. A complete 80-piece replacement finger set ships standard with every machine, covering approximately 6 to 8 months of daily use. The entire drum interior is fully exposed when the top lid is hinged open, allowing end-of-day cleaning with nothing more than a garden hose and food-safe detergent. The robust structural simplicity means that this machine operates reliably in remote rural processing sheds, urban wet markets, and every environment in between where access to chicken processing machine technical support may be limited.
