Automatic Can Sealing Machine
We Are Not Only Capable Of Selling Products, But Also Have The Ability To Undertake Full Turnkey Projects.
⚙️ Overview

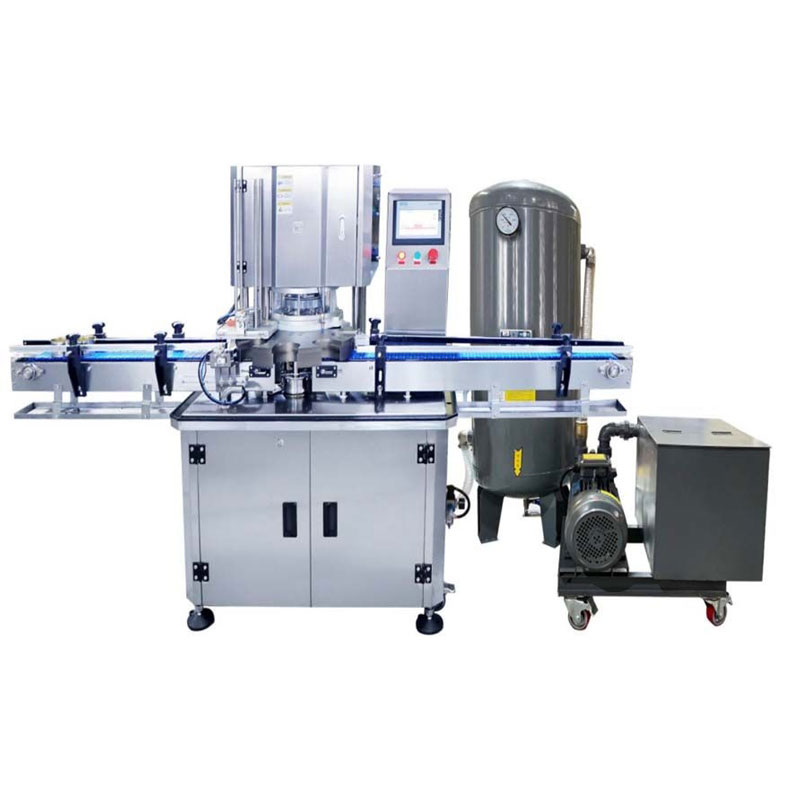

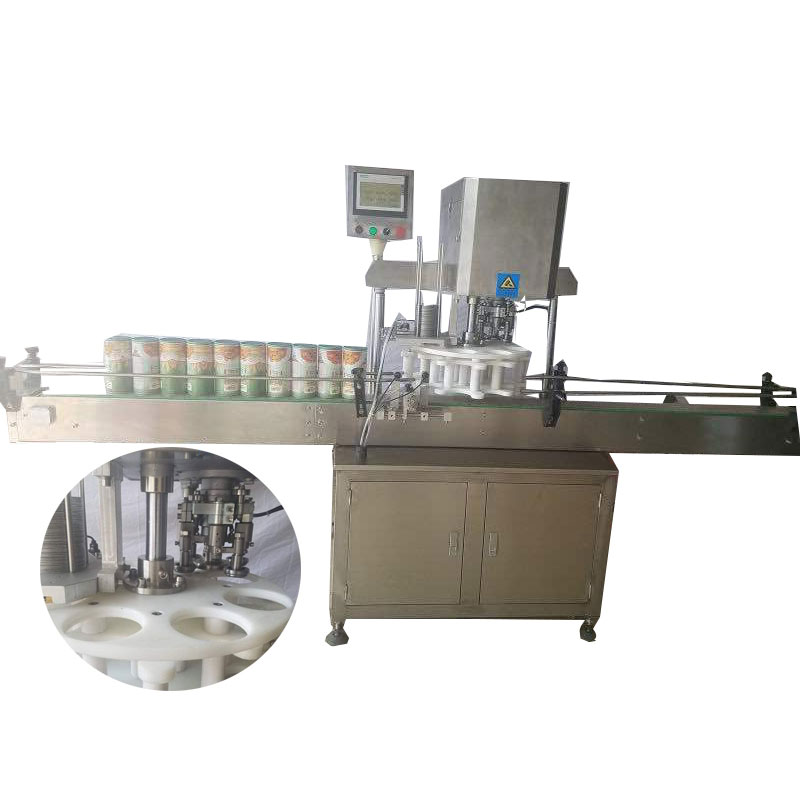

The Automatic Can Sealing Machine is designed for airtight, hygienic, and efficient can closure in modern food processing factories.
It handles a wide range of tin, aluminum, and paper cans, ensuring perfect double-seam quality for long shelf life and export-grade safety.
✅ Ideal for: tuna, sardines, fruits, sauces, beans, coffee, pet food, and more.
✅ Compatible with full canning lines (filling → sealing → sterilizing → labeling → packing).
🚀 Key Features & Benefits
🧠 1. Intelligent Seaming System
Servo-controlled rollers guarantee uniform seam pressure and consistent quality.
Adjustable speed up to 300 cans/min, suitable for both medium and large-scale plants.
🧴 2. Hygienic & Food-Grade Design
Entire structure made of SUS304 stainless steel.
Corrosion-resistant and fully compliant with HACCP / GMP / ISO22000.
Open-frame structure for easy cleaning and inspection.
⚡ 3. High Efficiency, Low Cost
Reduces labor needs by over 70% compared with manual sealing.
Low power consumption and minimal maintenance downtime.
Compatible with both automatic and semi-automatic filling systems.
🔁 4. Flexible for Multi-Size Cans
Quick-change tooling for different diameters and heights (50–220 mm).
One operator can switch production formats within minutes.
🛡️ 5. Smart Control & Safety
PLC + Touchscreen interface for real-time monitoring.
Auto-stop for missing lids or can blockage.
Optional online seam inspection and rejection system.
🔩 Technical Parameters
| Model | Can Diameter (mm) | Can Height (mm) | Speed (cans/min) | Power (kW) | Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| YL-ACS-100 | 52–99 | 39–160 | 60–100 | 2.2 | 380V / 50Hz | 1500×850×1750 | 600 |
| YL-ACS-200 | 65–130 | 50–200 | 100–200 | 3.0 | 380V / 50Hz | 1700×950×1800 | 750 |
| YL-ACS-300 | 73–153 | 60–220 | 200–300 | 4.0 | 380V / 50Hz | 1900×1050×1850 | 850 |
💡 Optional: vacuum sealing, nitrogen flushing, or anti-explosion configuration.
🏭 Applications
| 🐟 Fish & Meat | 🥫 Vegetables | 🍑 Fruits | 🌶️ Sauces & Pastes | 🐕 Pet Food |
|---|---|---|---|---|
| Tuna, Sardine, Mackerel | Sweet Corn, Mushroom, Beans | Pineapple, Peach, Lychee | Tomato Paste, Chili Sauce, Jam | Wet Food, Nutritional Paste |
🔧 Optional Systems
Vacuum or Nitrogen Sealing System – for oxygen-sensitive products
Lid Sorting & Feeding System – ensures continuous operation
Seam Inspection System – detects micro-defects automatically
Explosion-Proof Design – for aerosol or chemical packaging lines
🧰 Operation & Maintenance
🪛 Easy Maintenance
Tool-free disassembly; one technician can ｒｅｐｌａｃｅ rollers in 15 minutes.
Central lubrication system reduces wear and noise.
🖥️ Smart Control
Multilingual interface (EN / CN / ES / AR).
Displays speed, count, and real-time fault diagnosis.
💡 Why Choose This Model
✔ Proven reliability across 30+ export markets (Europe, SEA, Middle East)
✔ Compact footprint suitable for small to medium plants
✔ Seamless integration with automatic filling and labeling lines
✔ Boosts product hygiene, sealing accuracy, and shelf stability
🧩 Full Canning Line Integration (Recommended)
Automatic Filling Machine
Vacuum Exhausting System
Can Sealing Machine

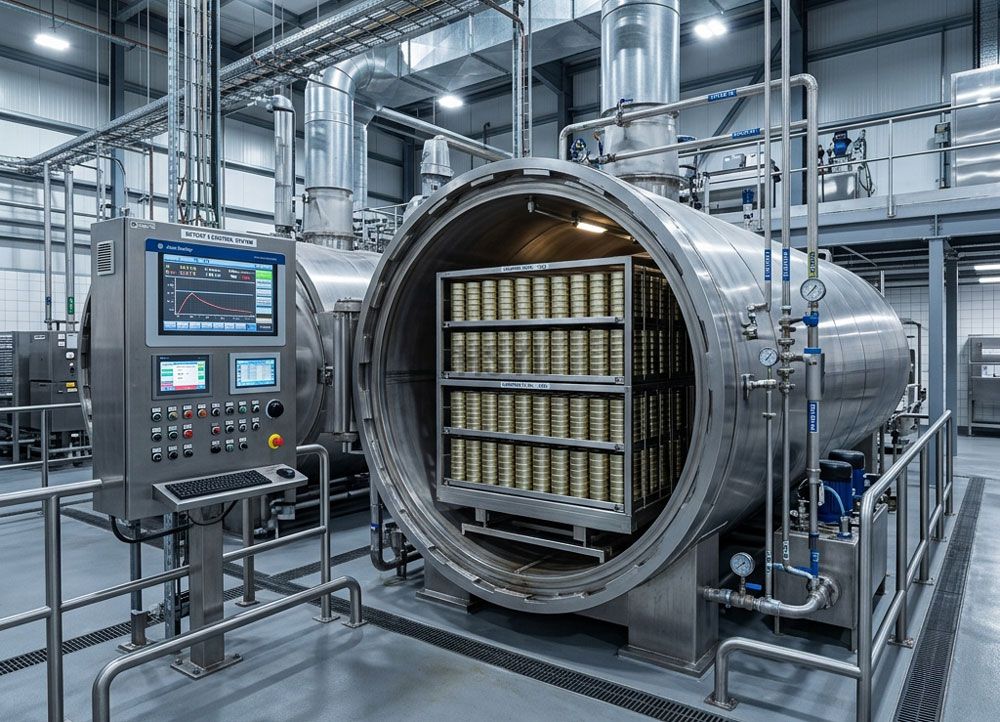

Retort Sterilizer
Cooling Conveyor
Labeling & Packaging Unit
Integrating the sealing machine into a complete automated canning line ensures consistent output and maximum return on investment.
📞 Get a Free Quotation
Looking to upgrade or automate your canning process?
💬 Contact us today to customize your Automatic Can Sealing Machine configuration based on your product, can size, and production capacity.
