Automatic Meatball Making Machine
We Are Not Only Capable Of Selling Products, But Also Have The Ability To Undertake Full Turnkey Projects.

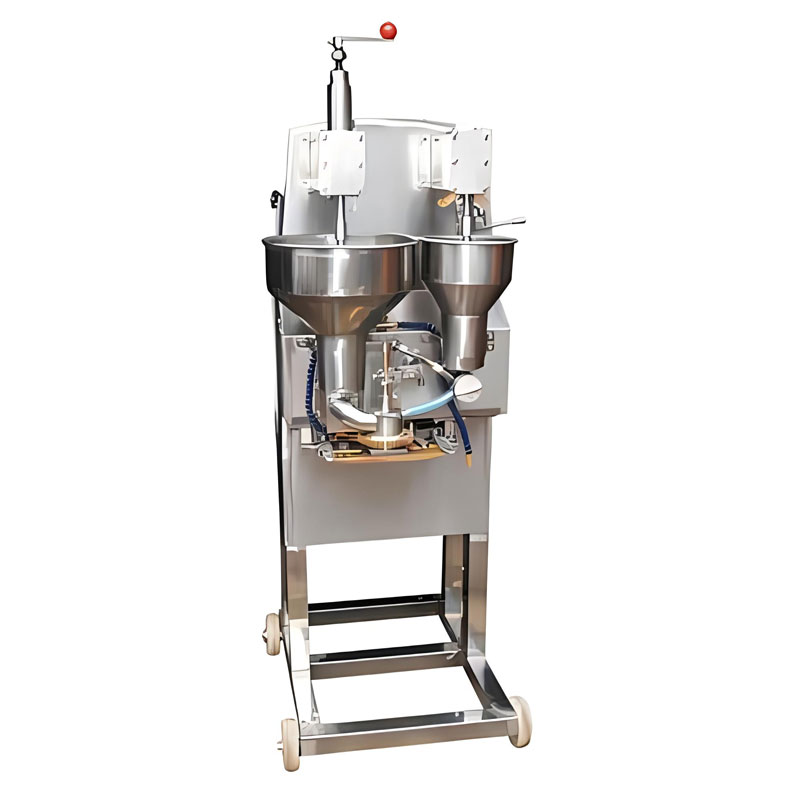

Automatic Meatball Making Machine | 210 Pcs/Min Output
Manually forming or relying on rudimentary scoop mechanics for sticky, dense meat emulsions inevitably guarantees severe product weight fluctuations, destroying your calculable profit margins and causing inconsistent thermal core cooking. Engineered expressly for demanding high-capacity automated food plants, our industrial automatic meatball making machine dictates absolute geometric perfection. Powered by an unyielding 1.5KW continuous motor, this heavy-duty former forcefully extrudes highly viscous meat batters through specialized copper-alloy molds, instantaneously shearing and dropping up to 210 perfectly spherical, identically weighed meatballs every single minute without fatiguing.
- Extreme Forming Velocity: Relentlessly churns out 210 pieces per minute, rapidly clearing upstream batter hoppers and heavily outperforming multi-station manual forming lines.
- Absolute Weight Control: The mechanical gear extrusion matrix ensures that whether you are forming tiny 15-gram soup balls or massive 50-gram Swedish meatballs, the final weight deviation remains within ±1 gram.
- Anti-Adhesion Metallurgy: Pure copper or specialized composite material molds aggressively resist the sticking action of high-protein fish paste and dense beef mixtures, preserving the perfect, unbroken sphere shape.
Technical Specifications of the Industrial Meatball Former
| Specification | Industrial Parameter |
|---|---|
| Hardware Model | AMF-250 High-Speed Forming Series |
| Maximum Production Capacity | 210 pcs/min (Continuous, uninterrupted mechanical extrusion) |

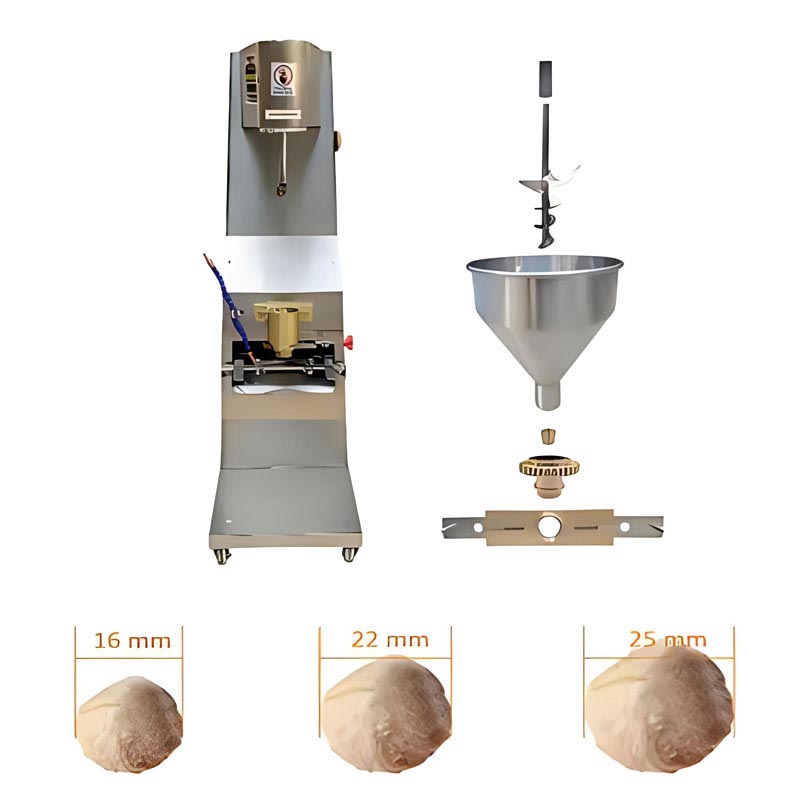

| Mold Compatibility Sizes | Adjustable forming inserts from Φ15mm to Φ35mm |
| Primary Drive Power | 1.5 KW (High-torque heavy-duty variable frequency motor) |
| Standard Operating Voltage | 220V or Three-Phase 380V / 50HZ (Customizable per region) |
| Structural Chassis Material | Full SUS304 Food-Grade Stainless Steel |
| Physical Machine Dimensions | 730 mm (L) x 540 mm (W) x 1780 mm (H) |
| Net Equipment Weight | 250 kg |
Mastering Sticky Emulsions via Premium Forming Molds
- Scissor-Action Mechanical Shearing (Perfect Spheres): Rather than awkwardly pressing the meat, the extrusion die pushes a strict volume of batter outward while highly synchronized, curved internal sliding plates slice across the opening like dull scissors. This rolling cut immediately forces the meat into a flawlessly round ball, totally preventing trailing "tails" or teardrop deformations.
- Versatile Hopper Feeding (No Cavitation): The deep, gravity-fed SUS304 primary hopper is engineered with an internal slow-rotating spiral auger. This auger aggressively pushes highly resistive, cold, low-moisture batters downward into the gear pump, entirely preventing chaotic air pockets (cavitation) that cause frustratingly hollow or underweight meatballs.
- Copper-Alloy Tooling Options (Total Non-Stick): Fish pastes and heavily emulsified chicken batters naturally act like glue against standard steel. Our customized copper-alloy forming dies possess a totally distinct surface tension coefficient, encouraging the incredibly sticky balls to instantly drop into the water bath without violently tearing apart.
- Rapid Modular Changeovers (Agile Processing): Plant managers frequently pivot SKU numbers daily. By utilizing a simple mechanical wrench, the floor operator can drop out the 20mm tooling plate and physically swap in a massive 35mm die unit in under five minutes, ensuring maximum machine utilization across diverse product catalogs.
Seamless Integration within Centralized Meat Factories
Because the rapid 210 pcs/min extrusion speed creates highly fragile, raw meat spheres, the immediate drop zone is a matter of critical engineering. The towering 1780mm tall architecture of this 250kg former is specifically designed to overhang the intake edge of a continuous thermal water bath. Operating strictly downstream from a massive commercial bowl cutter, perfectly emulsified batter is loaded into the hopper. The newly formed meatballs instantaneously drop directly into the waiting 80°C hot water trough for immediate protein setting. Once par-cooked to retain their shape, the meatballs can be rapidly transferred by conveyor belts into an advanced frozen food production line for deep IQF freezing, securing a massive, uninterrupted industrial workflow.
IP65 Washdown Architecture for Demanding Food Safety Audits
Operating continuously with raw poultry, beef, and seafood practically guarantees extreme bacterial exposure. Our engineering team designed the equipment explicitly for ruthless cleaning protocols. The entire 250kg chassis is wrapped in thick-gauge SUS304 stainless steel plating, fully preventing localized pitting erosion from aggressive meat salts. The dual internal gear pumps and forming mechanisms easily detach, allowing night-shift sanitation crews to submerge the entire core cutting assembly in caustic acid baths. The 1.5KW electrical propulsion housing strictly guarantees IP65 moisture resistance, confidently withstanding highly pressurized foam hoses day after day without devastating electrical shorts.
Are inconsistent meatball weights and massive labor costs actively draining your monthly profits? Connect with our global Turnkey engineering department today for an exact layout configuration and an official quotation.
Frequently Asked Questions
What types of raw meat batters can this automated machine effectively handle
The robust 1.5KW gear pump is built for intense viscosity. It masterfully handles heavily emulsified beef meatballs, coarse ground pork, highly sticky Asian-style fish balls, and purely vegetarian or vegan protein masses. The internal spiral auger forcefully prevents dense batters from bridging in the hopper.
Does the machine physically cook the meatballs before discharging them
No, this explicitly serves as an extrusion and mechanical forming unit. The raw, incredibly soft meatballs drop downward from the cutting dies. To prevent them from violently smashing upon impact and losing their perfect spherical shape, the machine must be positioned physically over a dedicated hot water setting tank or a deep-frying oil bath.
Can the machine create meatballs with an internal liquid filling or cheese core
The specific model detailed here (AMF-250) is engineered strictly for single-material solid meatballs. If your industrial production demands a complex co-extrusion product featuring an injected cheese, sauce, or liquid core, you will require an upgraded dual-hopper encrusting machine specifically built for core-filled applications.
Is the physical forming mold size adjustable via the electronic digital touchscreen
No, the actual geometric footprint of the meatball is dictated entirely by cold, hard mechanical physics. While the touchscreen actively controls the motor speed and extrusion velocity, changing the physical diameter (e.g., from an 18mm ball to a 32mm ball) mandates that the operator physically unbolt and swap the stainless steel sliding die plate for a different dimensional caliber.
How difficult is it to dismantle the cutting module for the mandatory nightly deep cleaning
It is incredibly straightforward. Recognizing that sanitation time directly impacts factory margins, our engineers incorporated quick-release knobs. The external hopper, internal feeding augers, primary gear pump housing, and cutting scissor plates can be rapidly hand-stripped down to their bare components and hauled to the deep sink in approximately 10 to 12 minutes without specialized technician tools.
