Big Chicken Feet Peeling Machine

Heavy-Duty Chicken Feet Peeling Machine: Industrial-Scale Continuous Processing

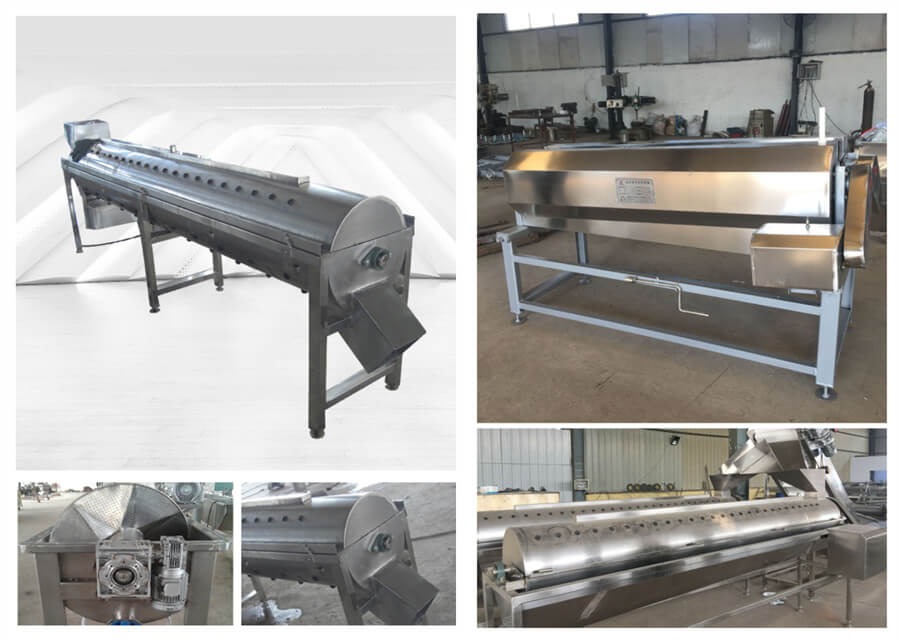

The CFP-1500 is a heavy-duty, continuous-feed chicken feet peeling machine engineered for medium-to-large abattoirs that have outgrown batch-type desktop peelers but do not require a fully integrated Turnkey production line. Processing 1200 to 1500 kg of pre-scalded chicken feet per hour through a single oversized peeling drum, this standalone industrial unit bridges the critical capacity gap. Facilities that already operate independent scalding tanks and chilling systems simply connect the CFP-1500 as the high-throughput core peeling node, immediately multiplying their output by five to eight times compared to smaller batch machines without redesigning their existing factory workflow.

• Continuous gravity-fed intake hopper eliminates the stop-start inefficiency of batch loading cycles.
• Dual-motor architecture delivers independent drum rotation and disc spinning torque for aggressive cuticle stripping even on thick-skinned spent hen feet.
• Oversized 800 mm diameter peeling chamber accommodates surges in infeed volume without jamming or mechanical overload.

CFP-1500 Industrial Peeler Specifications

Dual-Motor Architecture: Independent Mechanical Forces

Small batch peelers rely on a single motor spinning the drum floor while the walls remain static. This generates adequate friction for thin-skinned young broiler feet but struggles severely with tougher cuticles from mature birds. The CFP-1500 solves this through an entirely different mechanical philosophy.

The primary 3.0 KW motor rotates the entire cylindrical drum barrel at a controlled 25 to 38 RPM via a heavy-duty chain drive. Simultaneously, an independent secondary 2.2 KW motor powers a counter-rotating array of rubber peeling discs mounted on a central shaft running through the drum's longitudinal axis. These discs spin in the opposite direction to the drum rotation, creating an aggressive dual-shear friction zone. Chicken feet tumbling inside are simultaneously scrubbed from the outside by wall-mounted rubber fingers and attacked from the center by the spinning disc array. This opposing mechanical action generates approximately 60 percent more peeling force than single-motor designs, consistently stripping even the most stubbornly bonded cuticle from spent hen feet in a single 40-second transit through the drum.

Continuous-Feed Workflow Elimination of Batch Bottlenecks

In small batch peelers, the operator must stop the machine, open a gate, remove finished paws, close the gate, and reload. Each interruption costs 15 to 20 seconds and cumulatively reduces effective hourly output by 25 percent. The CFP-1500 eliminates this entirely.

• Gravity Intake Hopper: A wide stainless steel funnel mounted at the drum intake end accepts a continuous stream of pre-scalded feet from an elevated scalding tank discharge conveyor or manual scooping station. Product feeds in by gravity without mechanical assistance.
• Helical Internal Progression: The rubber fingers and discs are arranged in a calculated spiral pattern that imparts a gentle axial conveying force. Feet entering at the intake end naturally migrate toward the discharge end as they tumble and peel, maintaining a constant flow-through without manual intervention.
• Open Discharge Chute: Cleaned white paws exit continuously through an angled stainless discharge ramp, falling directly into a chilling water bath or onto a downstream inspection conveyor. The operator never touches the machine during active production.

Scalability Within Existing Factory Infrastructure

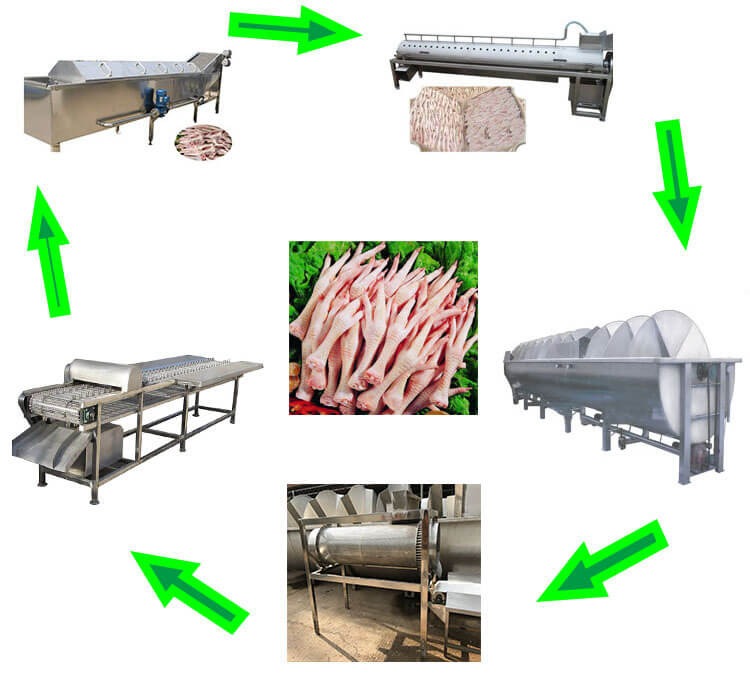

The CFP-1500 is deliberately designed as a modular processing node, not a closed ecosystem. Facilities with existing gas-fired or steam-heated scalding tanks can pipe their blanched feet directly into the peeler hopper via a short inclined belt conveyor. Chilled paws exiting the discharge can feed into existing grading tables and packing stations. For operations processing high daily volumes alongside primary carcass breakdown, positioning the CFP-1500 as a parallel branch off the main kill floor allows the paw byproduct stream to be monetized without disrupting the core poultry line carcass flow. Abattoirs eventually scaling to fully automated configurations can later wrap the CFP-1500 with upstream and downstream modules to construct a complete processing chain, leveraging proven poultry processing equipment manufacturers for compatible ancillary components.

Industrial Durability and Heavy-Use Maintenance

Running 1500 kg per hour through a mechanical peeling drum generates enormous physical stress on every component. The CFP-1500 chassis is welded from 4mm thick SUS304 plate, substantially heavier than the 2mm sheet used in smaller machines. The drum shaft rides on oversized sealed bearing housings rated for 20,000-hour continuous duty. Both drive chains are enclosed within stainless steel guard channels, preventing organic debris from fouling the transmission while simultaneously protecting operators from rotating pinch hazards. The reinforced rubber peeling discs, formulated at Shore A 48 durometer specifically for sustained industrial loads, maintain effective surface grip for approximately 3 to 4 months of continuous double-shift operation before replacement. A complete disc and finger replacement kit ships with every machine.
