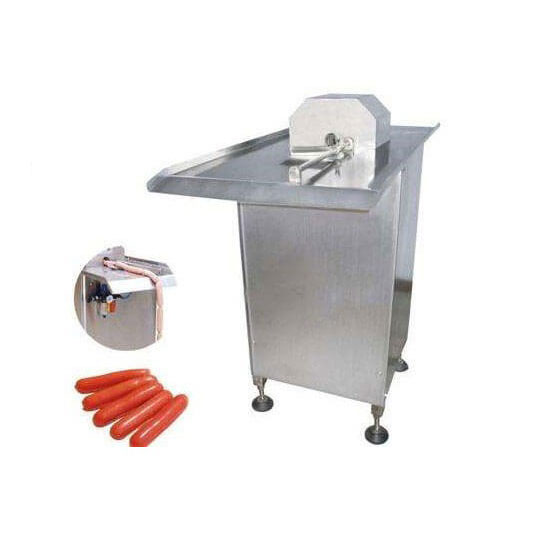

Heavy-Duty Automatic Sausage Tying Machine
Traditional smoked sausages, artisan salamis, and heavily stuffed regional recipes frequently utilize rigid, thick natural casings that physically cannot withstand the violent torsion of high-speed mechanical twisting. For these premium continuous products, physical thread tying is absolute. Engineered specifically to ｒｅｐｌａｃｅ massive, slow manual tying crews in high-output smoking facilities, our automatic sausage tying machine forcefully bridges the gap between artisanal presentation and industrial efficiency. By utilizing a highly synchronized rotating threading head driven by precision servo systems, this equipment seamlessly binds and knots continuous meat chains using standard food-grade cotton twine, ensuring a highly secure closure that will not unravel during aggressive thermal processing.
- Extreme Knotting Velocity: Digitally executes up to 80 secure thread bindings per minute on thick casings, drastically multiplying total daily factory output.
- Artisanal Un-twisted Preservation: The machine solely relies on thread compression rather than twisting the meat matrix, perfectly protecting the internal cellular structure of premium coarse-ground products.
- Micro-Precision Length Control: The digitized traction feed aggressively guarantees identical distance between knots, utterly eliminating the unacceptable product giveaway caused by subjective human tying.
Technical Specifications of the Industrial Thread Tying Machine
| Specification | Industrial Parameter |
|---|---|
| Hardware Model | STM-500 Servo-Thread Series |
| Continuous Tying Speed | 10 to 80 knots/min (Parameter governed by product length) |
| Acceptable Casing Diameters | Φ 10 mm to Φ 42 mm (Adjustable mechanical feeding throat) |
| Supported Tying Materials | Food-grade cotton twine, waxed polyester thread |
| Drive Mechanism Power | 0.75 KW (Panasonic closed-loop servo tracking) |
| Standard Operating Voltage | Single-Phase 220V / 50HZ (Adapts to diverse facility grids) |
| Structural Material | SUS304 Food-Grade Stainless Steel (Full washdown compliance) |
| Physical Dimensions | 950 mm x 550 mm x 1050 mm |
| Net Equipment Weight | 110 kg |
Mechanical Innovations Driving Yield Optimization
- Zero-Torsion Tying Dynamics (Casing Protection): Unlike standard linkers that rapidly spin the meat tube to create a friction seal, this machine forcefully holds the sausage completely stationary. A specialized rotating threading arm revolves around the casing at blistering speeds, pulling the twine tight and knotting it. This lack of rotation makes it the only viable solution for brittle, over-stuffed natural hog casings.
- Continuous Tension Spool Delivery (Uninterrupted Shifts): The heavy-duty exterior thread spool continuously feeds the looping mechanism under strict mechanical tension. A single massive thread cone can reliably process up to 3,000 kilograms of sausage before requiring manual replacement, drastically reducing machine idle time.
- Variable Thread Pinching Force (Accommodating Densities): The final mechanical pull of the knot is governed by an adjustable tensioning spring. Operators can dial down the tying friction for incredibly soft, high-fat liver sausages, or violently crank up the stricture force to aggressively seal heavily salted hard salami mixtures prior to long-term fermentation.
- Programmable PLC Calibration (Rapid Changeovers): Factory line supervisors rely on the waterproof HMI touch interface to command the servo motor. With two direct screen taps, the unit shifts its pulling traction from generating dense 50mm snack sticks to long 350mm European-style smoked links.
Seamless Integration within 800kg/h Custom Smoked Sausage Plants
A specialized tying machine is invariably the final critical mechanical touch in a premium traditional smokehouse operation. Distinctively tied sausages present an expensive, artisanal visual appeal on highly competitive retail supermarket shelves. Positioning this tying unit immediately downstream from a commercial sausage making machine abruptly eliminates an enormous bottleneck historically caused by sprawling teams of manual tying workers. Our engineering division designs our tying equipment to serve as the highly dependable linking anchor within a broader layout of complex meat processing machinery, bridging the treacherous gap between rapid wet meat extrusion and final hanging on thermal smoking racks.
Why Our Meat Processing Architecture Withstands Demanding Operations
Operating in heavily wet, intensely salted meat processing halls destroys inferior metal alloys within months. We exclusively utilize heavy-gauge SUS304 stainless steel across the entire skeletal frame, feeding guides, and external covers, thoroughly defending the equipment against catastrophic rust and lactic acid pitting. The internal servo mechanics are strictly isolated within a waterproof IP65 engineering block, permitting daily aggressive foam washdowns. From precise OEM factory voltage configurations to global deployment and localized engineer support, our manufacturing backbone guarantees highly resilient uptime for critical food producers.
Are you struggling to scale up your premium smoked sausage lines due to manual tying constraints? Talk with our international sales engineers today to receive a precise dimensional layout and equipment quote tailored to your facility.
Frequently Asked Questions
What specific sizes and types of thread can this tying machine safely use
The mechanical looping arm is engineered to reliably accept highly standard conical spools of food-grade cotton twine or high-tensile polyester tying thread. The thread thickness is highly forgiving, generally ranging between 1.0mm and 2.5mm diameters, allowing you to source tying consumables from local industrial suppliers without being locked into expensive proprietary spools.
Can this machine physically slice or cut the links into individual singular pieces after tying the knot
No, this specialized unit aggressively wraps the thread and tightly cinches the continuous casing, resulting in a long, beautifully articulated chain of sausages. To achieve absolute singulation, the continuous chain must subsequently pass through a dedicated standalone mechanical strand cutter or be manually snipped prior to retail vacuum packaging.
Is the physical threading process difficult requiring constant technical maintenance intervention
Not at all. Operating the threading pathway is remarkably similar to loading a robust industrial sewing machine. Our engineers provide a clear, color-coded threading diagram physically etched onto the stainless steel casing. A trained floor operator can easily snap a brand new thread cone into place and re-thread the guiding tension loops in under 45 seconds.
How does the machine react if it encounters a massive, un-ground bone fragment blocking the tying tunnel
The Panasonic closed-loop servo drive actively calculates traction resistance in absolute real-time. If an immense, solid bodily mass causes sudden extreme mechanical friction inside the narrowing feeding throat, the intelligent PLC triggers an instant electromagnetic brake, halting the traction belts within 0.1 seconds to prevent severe damage to the rotation ring or internal shafts.
Do you offer direct sea-freight shipping and customs support for South American factories
Yes, we absolutely specialize in heavy industrial export protocols. As a deeply experienced global Turnkey manufacturer, our logistics department routinely manages robust ISPM-15 wooden crate packing, container loading, marine insurance, and complex CIF/FOB customs documentation to precisely deliver machinery to major ports worldwide.
