Ultrasonic Cutting Machine

Automated 20kHz Industrial Ultrasonic Cutting Machine for Zero-Smear Pastry Portioning

As the international engineering sales director coordinating complex factory installations globally, I continually observe plant managers misdiagnosing volumetric waste. Slicing heavily viscous, multi-layered products—such as dense cheese cakes, sticky nougat, or delicate mousse—is structurally hostile to standard mechanical blades. Pushing steel through fat matrices creates friction drag, inevitably leading to collapsed cake sidewalls, smeared cross-contamination between flavors, and immense edge trim waste. We designed this specific multi-axis ultrasonic layout explicitly to solve the -5°C micro-frozen processing bottleneck, removing the necessity for severe blast freezing while ensuring absolute orthogonal exactness on every slice.

• Frictionless Acoustic Slicing: Operates at an active 20,000 cycles per second to create a micro-barrier that completely prevents fat molecule adhesion to the blade.
• Payload Yield Scaling: Delivers a consistent throughput of up to 1,200 to 1,500 kilograms per hour, dropping volumetric giveaway to strictly below 1.5%.
• Aviation-Grade Metallurgy: Employs exclusively forged Ti-6Al-4V titanium alloy sonotrodes paired with a fully SUS304 heavy-gauge stainless steel structural gantry.

Technical Engineering Matrix: Model HSYL-UC600 Core Specifications

When calculating floor layouts and electrical utility drops for capital equipment procurement, precision parameters dictate operational uptime. The following specifications map the standard baseline configuration engineered for heavy continuous shifts.

Eradicating the Deflection Drag: Operator-Independent Mechanical Advantages

A machine footprint should never outpace its functional recovery value. By replacing blind pneumatic drop-heads with digitally governed acoustics, the equipment physically removes the mechanical wedge-tearing effect that traditionally destroys up to 12% of a baking run's sellable margins.

• Viscoelastic Smear Prevention: The high-frequency titanium horn prevents layers of chocolate and fruit matrices from bleeding into vanilla sponge bases, guaranteeing retail-ready visual aesthetics on the first plunge without manual wiping interventions.
• Aggressive IP65 Washdown Architecture: Fabricated with continuously welded SUS304 tubular frames lacking horizontal flat catch-points. The fully enclosed piezoelectric transducer housings repel high-pressure, high-temperature caustic sanitation foams, reducing shift-changeover cleaning duration by 40%.
• Thermal Window Expansion: Standard blades require cakes to be deep-frozen to -18°C. This acoustic edge slices flawlessly at a mildly tempered -4°C to -6°C, drastically cutting the kilowatt-hour burn rate of your upstream spiral blast freezers.

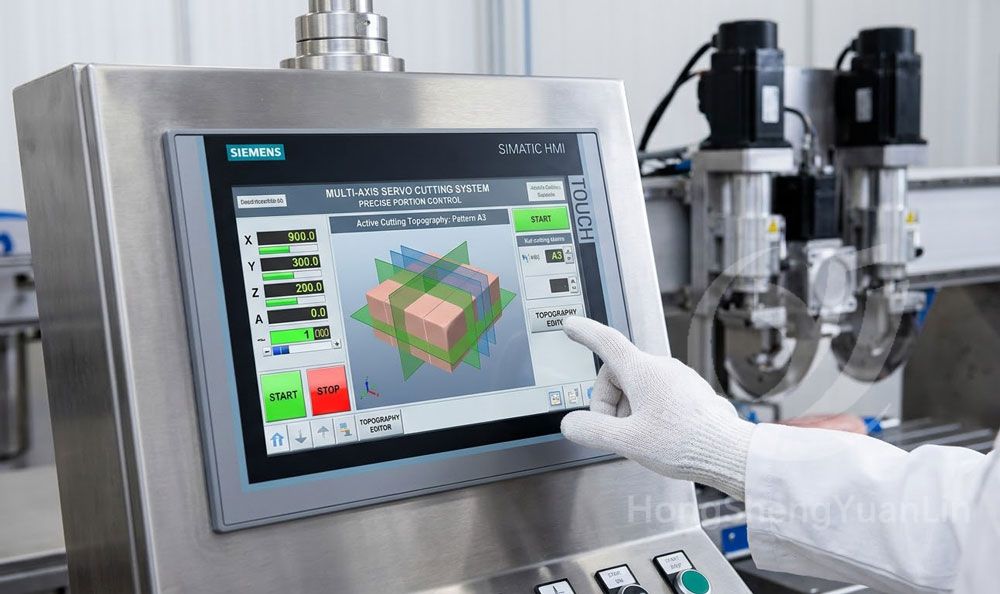

• Active Topography Alignment: When integrating this cutting module into wider automated food production lines, the onboard optical laser scanners map the exact localized height and perimeter of incoming slabs. It dynamically shifts the X-Y coordinates to capture maximum edge yield on irregularly baked pans.

Structural Breakdown: Manipulating 20kHz Piezoelectric Resonance

To grasp why this asset outperforms standard rotary knives or wire cutters, one must examine the internal acoustic drive train. The Siemens electrical cabinet translates standard three-phase facility power into a high-frequency electrical signal. This signal hits the piezoelectric converter located immediately above the cutting deck. The converter physically expands and contracts, transforming the electrical wave into a massive mechanical vibration.

This vibration is fed through an engineered titanium booster which amplifies the wave amplitude before driving it entirely into the Ti-6Al-4V titanium blade (the sonotrode). Because the blade oscillates microscopically 20,000 times per second, it effectively vaporizes friction. It slices through dense fat networks and delicate air pockets simultaneously without physically compressing the cellular structure of the baking matrix.

Inline Capacity Fluidity for 1500kg/h Central Kitchen Architectures

Standalone processing forces dangerous manual handling events. The internal servos managing the Z-axis descent profile are strictly synchronized to the primary conveyor via an absolute encoder loop. As the product advances, the cutting head matches the precise horizontal speed of the belt, executes the vertical plunge, and extracts itself without the product ever stopping its forward momentum.

For engineering directors modeling complete facility overhauls, the integration capability of this module prevents severe bottlenecking. We explicitly engineer the PLC communication protocols to handshake continuously with upstream tunnel ovens and downstream multipack flow-wrappers. Connecting this robotic precision into a holistic customized cake production line secures a completely touchless transition from batter extrusion to final hermetic retail packaging.

Global Compliance Baseline: BRC and CE Certification Directives

Deploying machinery across complex international jurisdictions demands rigorous auditing compliance. We do not construct machinery for single-market tolerances. The electrical schematics conform heavily to exact CE low-voltage and machinery directives, utilizing dual-channel physical safety interlocks on all polycarbonate guarding panels. From FDA-compliant blue-belt sanitary conveyors to hygienic cord grips mitigating bacterial harborage, the structural design intentionally minimizes microscopic risk, practically guaranteeing frictionless approvals during severe BRC Global Standard hygiene audits.

For procurement directors, facility engineers, and project managers planning 2026 site expansions, generic static slicing will permanently cap your yield metrics. Contact the HSYL engineering technical sales department today to request a detailed CapEx layout drawing, secure an exact equipment quotation, or arrange a live video test operation utilizing your facility's specific pastry matrices.
