Turnkey Food Plant Engineering
Customized Food Production Lines & Turnkey Engineering
Moving beyond single-machine sales, Hongsheng Yuanlin provides comprehensive turnkey production line engineering for large-scale food manufacturing plants, central kitchens, canning facilities, and frozen food processors. Benchmarked against global engineering pioneers (JBT FoodTech, Tetra Pak, GEA Systems), our turnkey services cover 3D architectural plant CAD, synchronized multi-machine automation (PLC/SCADA), Factory Acceptance Testing (FAT), and on-site global commissioning—achieving full commercial production readiness with guaranteed payback within 12 to 18 months.
Our 5-Stage Turnkey Engineering Workflow
01
3D Plant Layout & TRA
Detailed Technical Requirement Audit, material mass-balance simulation, utility drop sizing (power, water, steam), and 3D CAD layout.
02
Modular Custom Fabrication
Precision CNC machining, food-grade 304/316L metallurgy, open sanitary tubular framework, and centralized Siemens/Schneider electrical panels.
03
Full-Load FAT Testing
48-hour continuous simulated test-run at our manufacturing plant using actual customer recipe samples. 3rd party inspection welcomed.
04
Global On-Site Dispatch
Mechanical alignment, electrical hookup, line synchronization, and hands-on bilingual operator & maintenance staff training.
05
SAT & Lifecycle SLA
Site Acceptance Testing sign-off, remote IoT telemetry integration, 24/7 technical assistance, and wearable spare parts starter kits.
Custom Food Production Line Engineering Matrix
Custom engineered to match your factory floor geometry, local voltage/frequency, and daily output targets.
| Production Line Solution | Target Products | Automation Throughput | Core Integrated Equipment | Sanitary & Control Standards |
|---|---|---|---|---|
| Ready-to-Eat (RTE) Meal Line | Prepared bento boxes, airline catering, curries | 1,000 – 10,000 trays/hour | Auto tray de-nesting, multi-head filling, vacuum skin pack | HACCP / IP69K / CE Compliant |
| Continuous Canning & Retort Line | Canned tuna, sweet corn, luncheon meat | 100 – 600 cans/min | De-palletizer, rotary piston filler, vacuum seamer, retort | ASME Pressure Vessel / FDA Verified |
| Frozen Burger & Nugget Line | Beef patties, chicken nuggets, meatballs | 500 kg – 3,000 kg/hour | Former, batter applicator, breader, continuous fryer, IQF tunnel | USDA 3-A / Siemens S7-1500 PLC |
| Central Kitchen Sauce & Paste Line | Hot pot base, tomato puree, salad dressings | 1,000L – 8,000L / batch | Vacuum emulsifying tanks, jacketed cooking, aseptic pouch pack | Clean-In-Place (CIP) Integrated |
| Dehydrated & Freeze-Dried Fruit Line | Apple chips, mango slices, strawberry snacks | 500 kg – 5,000 kg/day | Continuous washer, abrasive peeler, slicer, vacuum freeze dryer | GMP / ISO 22000 Certified |

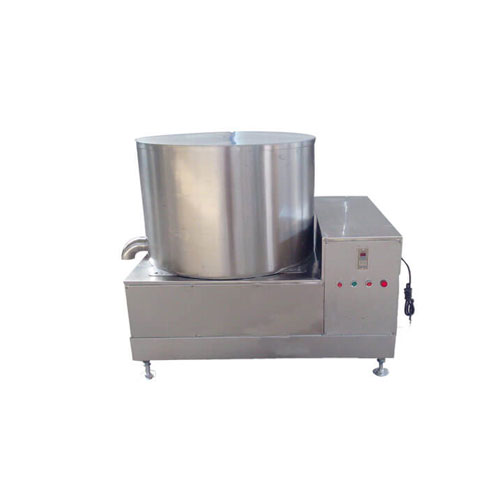

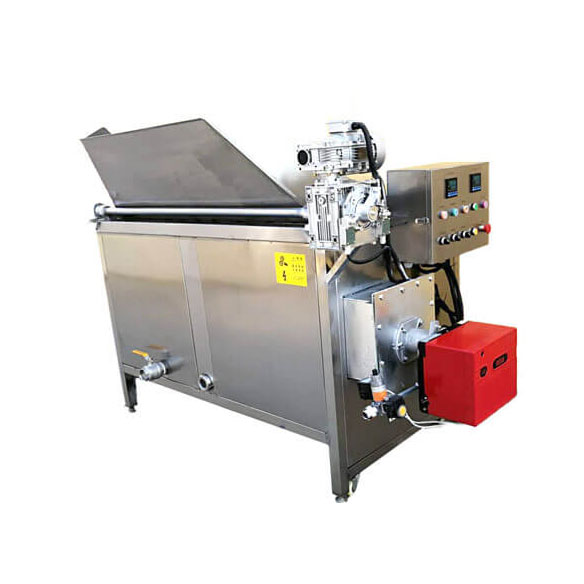

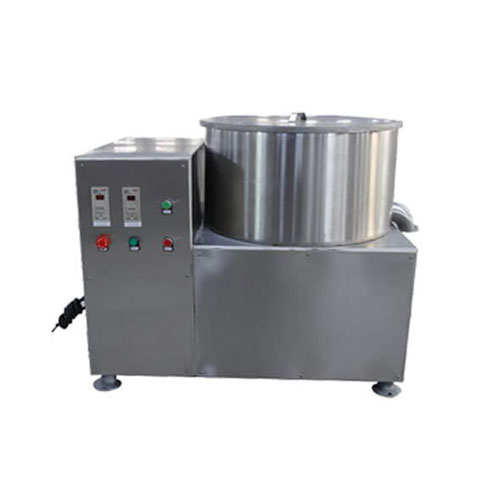

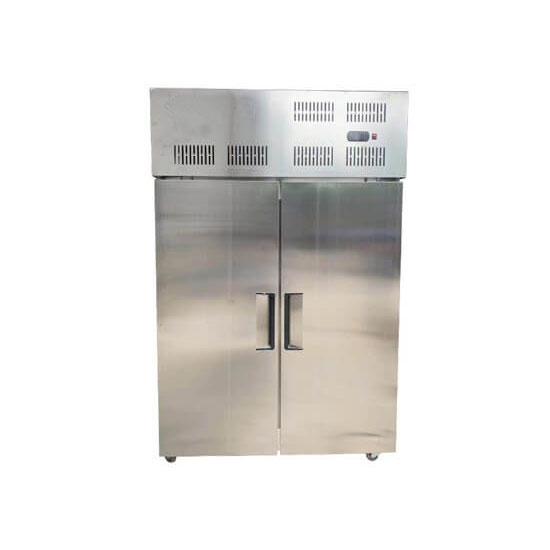

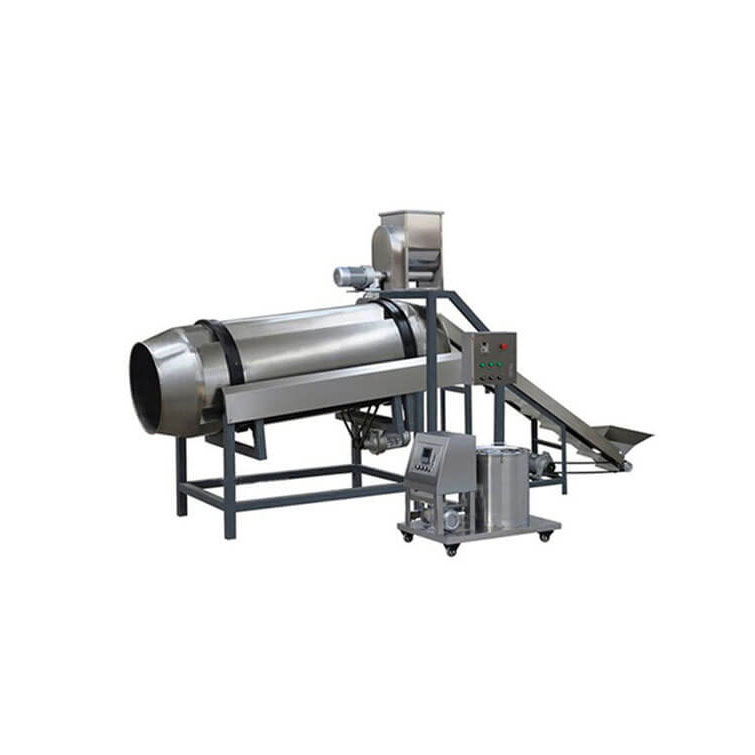

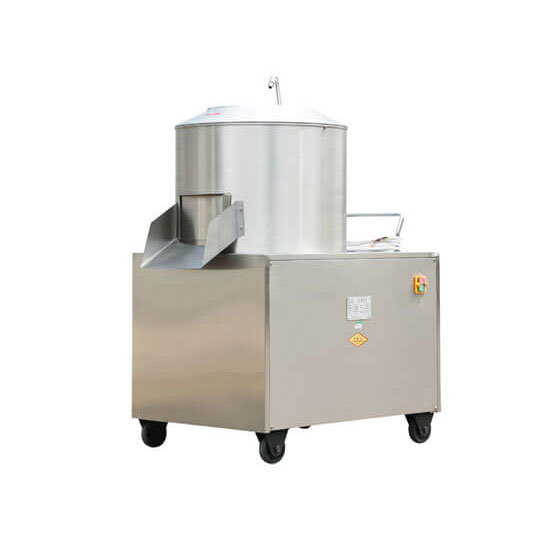

Turnkey Line Equipment Catalog
Modular machinery engineered for seamless synchronization in continuous processing lines.
Turnkey Project Pain Points & Resolutions
Critical Risks in Turnkey Factory Engineering & How We Eliminate Them
Why piecemeal machine procurement fails, and why single-source turnkey engineering guarantees project success.
Pain Point 1: Multi-Vendor Incompatibility & Speed Mismatches
Severe Line Bottlenecks & Inter-Machine Product Backups
Purchasing washers, cutters, and packaging machines from disparate vendors often results in mismatched conveyor speeds, unaligned transfer heights, and constant line blockages.
Our Engineering Resolution
We deliver single-source line architecture where every conveyor, buffer zone, and machine speed is dynamically synchronized via high-speed Profinet/EtherCAT bus controls.
Pain Point 2: Expensive Factory Floor Layout Errors
Floor Trenching & Civil Works Rework on Delivery
Machinery arriving on-site that doesn't fit room columns, blocks emergency exits, or sits far from electrical/drainage drops costs tens of thousands in urgent civil construction rework.
Our Engineering Resolution
Prior to fabrication, our engineers produce comprehensive 3D Building Information Modeling (BIM) CAD plans showing exact utility drops, floor slope drainage, and worker clearance zones.
Pain Point 3: Project Timeline Slippage & Missed Market Windows
Months of Delays Leaving Capital Investment Idle
Uncoordinated suppliers constantly delay shipments, forcing factory owners to pay idle facility rent and missing high-margin seasonal harvest or holiday retail launch windows.
Our Engineering Resolution
Dedicated project managers provide weekly milestone video reports with transparent Gantt charts. We guarantee contractually bound FAT sign-off and international shipping schedules.
Pain Point 4: Isolated Control Islands & Operator Fatigue
Workers Running Between Machines to Adjust Dial Settings
Stand-alone machines with individual dials force operators to manually tweak temperatures, belt speeds, and pump pressures at 8 different stations, risking human operational errors.
Our Engineering Resolution
A centralized Master SCADA HMI Touchscreen allows one operator to select product recipes, start/stop the entire line with one button, and monitor real-time throughput metrics.
Pain Point 5: Lack of Standardized Spare Parts & High Inventory Cost
Holding Stock of 10 Different Motor and Sensor Brands
When each vendor uses different motor brands, sensor voltages, and hydraulic fittings, the plant’s maintenance storeroom becomes overwhelmed with expensive redundant spare inventory.
Our Engineering Resolution
We enforce universal component standardization across the entire line (Siemens drives, Schneider contactors, Omron sensors, SKF bearings), minimizing spare parts overhead.
Pain Point 6: Workforce Skill Gaps & Operational Breakdowns
Complex Automation Machinery Ruined by Untrained Staff
After supplier installation teams depart, local factory workers frequently cause machine crashes or bypass safety interlocks due to inadequate, brief handoff training.
Our Engineering Resolution
Our commissioning package includes a mandatory 7-to-14 day on-site operational curriculum, bilingual SOP manuals, HD maintenance video guides, and continuous remote IoT diagnostics.
Turnkey Engineering & Food Manufacturing Insights
Turnkey Custom Production Line FAQ
1. What information do you require to begin designing a customized production line?
To engineer an accurate proposal, we need: (1) Target finished products and recipe process steps; (2) Raw material specs and target hourly output (kg/h or units/min); (3) Packaging format (canned, vacuum pouch, tray, IQF bulk); (4) Architectural plant dimensions (floor CAD, ceiling clearance, drain locations); (5) Utility parameters (voltage, steam pressure, water supply).
2. How do you guarantee the production line will meet our required capacity and quality standards?
We mandate formal Factory Acceptance Testing (FAT) before shipment. We run the fully assembled line at our manufacturing facility with your product samples, verifying throughput, weight accuracy, temperature stability, and sanitation. If FAT criteria are not 100% satisfied, machines are adjusted at our expense until contractual benchmarks are achieved.
3. Can you integrate our existing third-party machinery into the new customized line?
Yes. Our mechanical and electrical engineering team can integrate existing packaging machines, metal detectors, checkweighers, or retorts. We design custom transition conveyor transfer points and integrate PLC handshake signals (e.g., line start/stop, emergency stop, upstream bottle backup sensors).
4. What is the typical lead time from contract signing to line commissioning?
Turnkey lines typically require: 2 weeks for 3D layout engineering and client approval; 6 to 8 weeks for precision fabrication and assembly; 1 week for full-load FAT testing; 4 to 6 weeks for ocean shipping; and 2 to 3 weeks for on-site commissioning and staff training. The total timeline spans approximately 3.5 to 5 months.
5. What remote diagnostics or IoT support are built into the production line?
All centralized PLC control cabinets are equipped with secure industrial VPN/Ethernet gateway modules. With your plant's permission, our senior software engineers in China can connect remotely to your system within minutes to diagnose alarm faults, calibrate PID temperature loops, or update recipe logic without waiting for international travel.
