Bone Crusher Machine
We Are Not Only Capable Of Selling Products, But Also Have The Ability To Undertake Full Turnkey Projects.

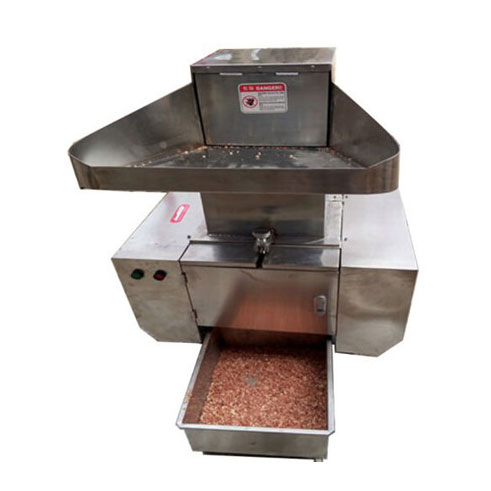

Heavy-Duty Industrial Bone Crusher Machine
Subjecting massive, rock-hard bovine femurs and rigid pig spines to weak, underpowered crushing blades inevitably results in catastrophic motor stalling, violently shattered internal gears, and deeply erratic fragments that ruthlessly jam your downstream extruders. Engineered with brutal, uncompromising mechanical force for high-tonnage rendering plants and commercial slaughterhouses, our industrial bone crusher machine completely annihilates structural animal calcium. Powered by a terrifyingly massive 11KW heavy-torque induction motor and armed with incredibly thick Cr12MoV alloy steel staggered shearing blades, this 550kg behemoth ruthlessly grips, splinters, and violently pulverizes up to 600 kilograms of raw biological bones per hour, successfully turning impossible butcher waste into highly lucrative bone meal and pet food base material.
- Colossal Shearing Force: The monstrous 11KW drive shaft delivers unrelenting kinetic torque, preventing the heavy rotary claw blades from ever bogging down or jamming when digesting deep-frozen cow skulls.
- Variable Particle Control: A specialized bottom-mounted heavy sieve grid mathematically restricts the exit point, allowing floor engineers to instantly dictate if the final crushed fragment size should be a powder-like 5mm or a chunky 80mm mass.
- Impact-Absorbing Steel Chassis: Deliberately over-engineered using exceptionally thick SUS304 food-grade plating over a heavy cast-carbon skeleton, violently dampening the terrifying sonic vibrations and kinetic shockwaves generated by crushing raw bones.
Technical Specifications of the Bone Grinder Equipment
| Specification | Industrial Parameter |
|---|---|
| Hardware Model | BCM-600 Heavy Rotary Crusher |
| Maximum Crushing Capacity | 200 to 600 kg/h (Dependent on exit mesh screen size) |
| Final Particle Output Size | 5 mm up to 80 mm (Controlled by interchangeable SUS304 grates) |
| Primary Drive Power | 11.0 KW (Industrial heavy-torque three-phase induction motor) |
| Rotary Blade Material Alloy | Premium Cr12MoV Tool Steel (Forged & Deep Hardened) |
| Standard Operating Voltage | Three-Phase 380V / 50HZ (Requires heavy facility breaker) |
| Physical Machine Dimensions | 1200 mm (L) x 900 mm (W) x 1450 mm (H) |
| Net Equipment Weight | 550 kg |
Crushing Massive Femurs with Cr12MoV Alloy Steel

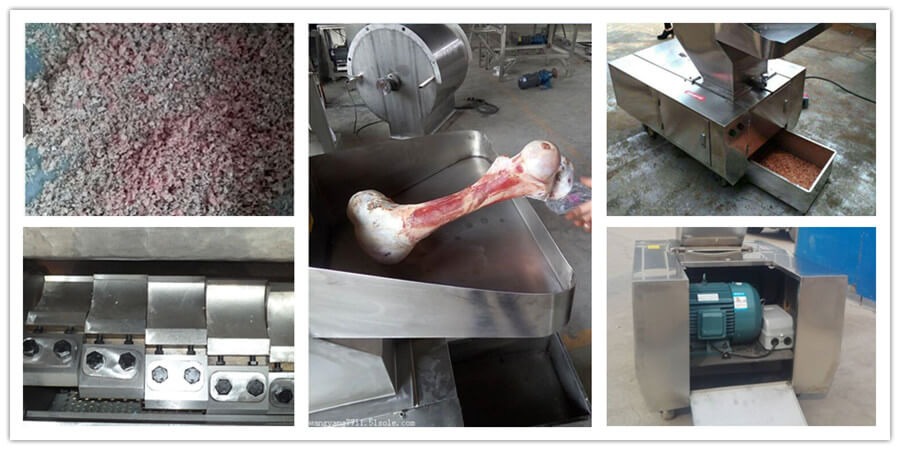

- Staggered Rotary Claw Matrix (Preventing Bounce-Out): Standard straight-cut blades physically slap hard round bones, causing them to dangerously bounce violently inside the top hopper. Our heavy rotary drum is machined with a staggered, aggressive claw formation. This calculated geometry forces the rotating teeth to physically hook into the bone matrix, dragging it violently downward across the stationary anvil blade for absolute, inescapable shearing.
- Cr12MoV Hardened Tool Steel (Unyielding Edge Retention): Processing dense animal calcium mixed with abrasive joint sand rapidly dulls and chips standard 304 stainless blades to ruin. We boldly utilize Cr12MoV alloy tool steel (typically reserved for heavy metal stamping dies). These blades are deeply heat-treated to an extreme Rockwell hardness, fiercely resisting catastrophic chipping and demanding drastically less sharpening downtime per quarter.
- Optimized Blade Clearance Gap (Micro-Pulverization): The internal clearance physically separating the rotating claws from the massive stationary strike plate is mechanically adjustable. By tightening this violent shear-zone gap down to a fractional millimeter, the equipment generates horrific hydraulic pressure, effectively shattering the hard bone while simultaneously ripping the soft outer meat, fat, and marrow into a highly uniform, cohesive paste perfectly suited for bone-broth extraction.
- Acoustic and Shrapnel Hopper Defense (Operator Security): The violent sonic explosion of shattering a 10kg frozen cow femur is deafening, and bone shrapnel fires upward like glass. The massive 400x500mm loading throat features a heavy, multi-layered SUS304 baffling grid. This completely prevents lethal, high-velocity bone shards from ejecting upward into the operator’s face while violently dampening the agonizing industrial decibel rating.
Fueling Heavy Extruders in Dry Pet Food Facilities
Because bone dust acts as the principal, high-margin calcium backbone in global premium pet nutrition, this 550kg crusher must aggressively anchor the absolute front line of your factory workflow. Once the raw slaughterhouse waste is brutally reduced to an exact 5mm paste via this machine, it immediately flows toward secondary meat processing machinery for emulsification or directly drops into the massive thermal cooking kettles. By definitively homogenizing the highly erratic raw bone geometry upstream, this specific crusher effortlessly ensures the high-pressure screws inside your complex dry pet food production line never suffer paralyzing mechanical blockages or massive thermal blowout jams, drastically accelerating your monthly tonnage.
Violent Impact Defenses and IP65 Washdown Framework
Pulverizing raw bones creates an environment utterly saturated with oxidized fat, incredibly sticky bone marrow, and high bacterial loads that smell horrific if left to rot. Our factory architects engineered the colossal 1200mm front access door on heavy industrial hinges, allowing night-shift sanitation teams to completely expose the lethal rotor assembly. The entire internal crushing vault is flawlessly welded SUS304 stainless steel, devoid of blind corners. Operators can unmercifully blast the Cr12MoV teeth and the sizing screens with scalding hot 90°C high-pressure water daily without ever breaching the fiercely waterproofed 11KW electrical command hub residing externally.
Are shattered internal gears and constantly jammed hoppers destroying your slaughterhouse rendering throughput? Attack the bottleneck. Speak with our global industrial architecture team today to secure this overwhelming 11KW bone crusher.
Frequently Asked Questions
Can this incredibly heavy 11KW crusher safely process completely frozen solid bone blocks directly out of the freezer
Yes, it absolutely dominates frozen material. However, the operator must be structurally aware that forcefully crushing a totally frozen solid block of immense cow femurs essentially acts like crushing solid ice and rock. While the massive Cr12MoV blades and 11KW motor will ruthlessly splinter the frozen mass, your effective hourly throughput capacity will mathematically drop (e.g., from 600kg/h down to roughly 350kg/h) due to the extreme heightened resistance.
If the ultra-hard Cr12MoV alloy blades eventually dull after months of severe impact, can they be manually re-sharpened
Absolutely. We do not force our clients to constantly buy incredibly expensive proprietary replacement rotors. The incredibly thick Cr12MoV blades are solidly bolted to the heavy rotary drum using massive hex-head machine bolts. Your maintenance technicians simply unbolt the specific dulled blade and transfer it to a localized industrial surface grinder, restoring the savage cutting edge in barely 15 minutes.
Does the massive machine physically cook or boil the bones to soften them before it engages the crushing cycle
No, this is strictly a high-velocity, brutal cold mechanical shearing machine. It does not introduce any thermal heat or steam, which preserves the absolute raw nutritional profile of the fragile marrow and blood locked inside the bone structure. The raw, pulverized output paste must subsequently be routed to a designated industrial boiler or steam jacketed kettle if you require thermal rendering or bone broth extraction.
Will the equipment violently jam and lock up if massive chunks of incredibly thick hide or hair are attached to the bone
The staggered rotary claws are explicitly designed to shred and tear incredibly tough, highly elastic tissues (like hide, thick ligaments, and dense tendons) by violently dragging them against the stationary anvil plate. The sheer 11KW rotational torque physically prevents the elastic hide from wrapping around the spinning axle and stalling the primary motor, effectively emulsifying the hide directly into the exit batter.
What precise safety mechanisms aggressively prevent an operator's arm from entering the terrifying 11KW crushing chamber
The immense upper intake hopper is purposefully designed with an excessively deep vertical drop-throat that drastically exceeds the physical length of a standard human arm, making the spinning metal claws physically unreachable from the top loading lip. Furthermore, an active electronic safety interlock instantly disables all 380V power if the heavy front maintenance access door is unlatched by even two millimeters.
